| Model: | SCC900HD-6 Model 2019 | Brand: | Sany |
|---|---|---|---|
| Max Lifting Capacity: | 90 T | Max Boom Length: | 55m |
| Engine Rated Power: | 242 /2100 Kw/rpm | Engine: | Cummins QSL9-C325 |
| Color: | Red | Year: | 2019 |
| High Light: |
Second Hand Sany Crawler Crane, 90Ton Second Hand Sany Crawler Crane, Second Hand 90 Ton Mobile Crane |
||

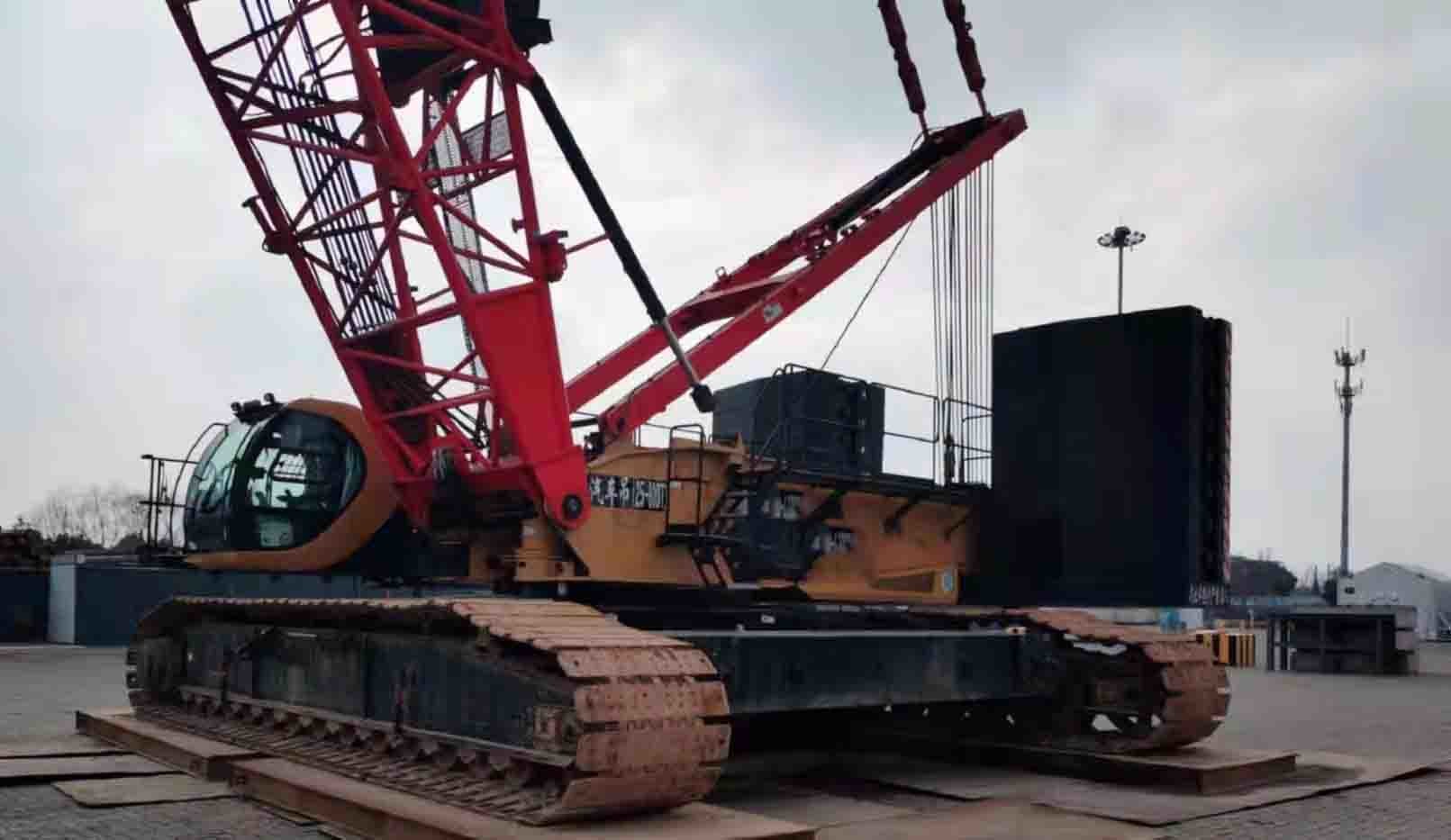

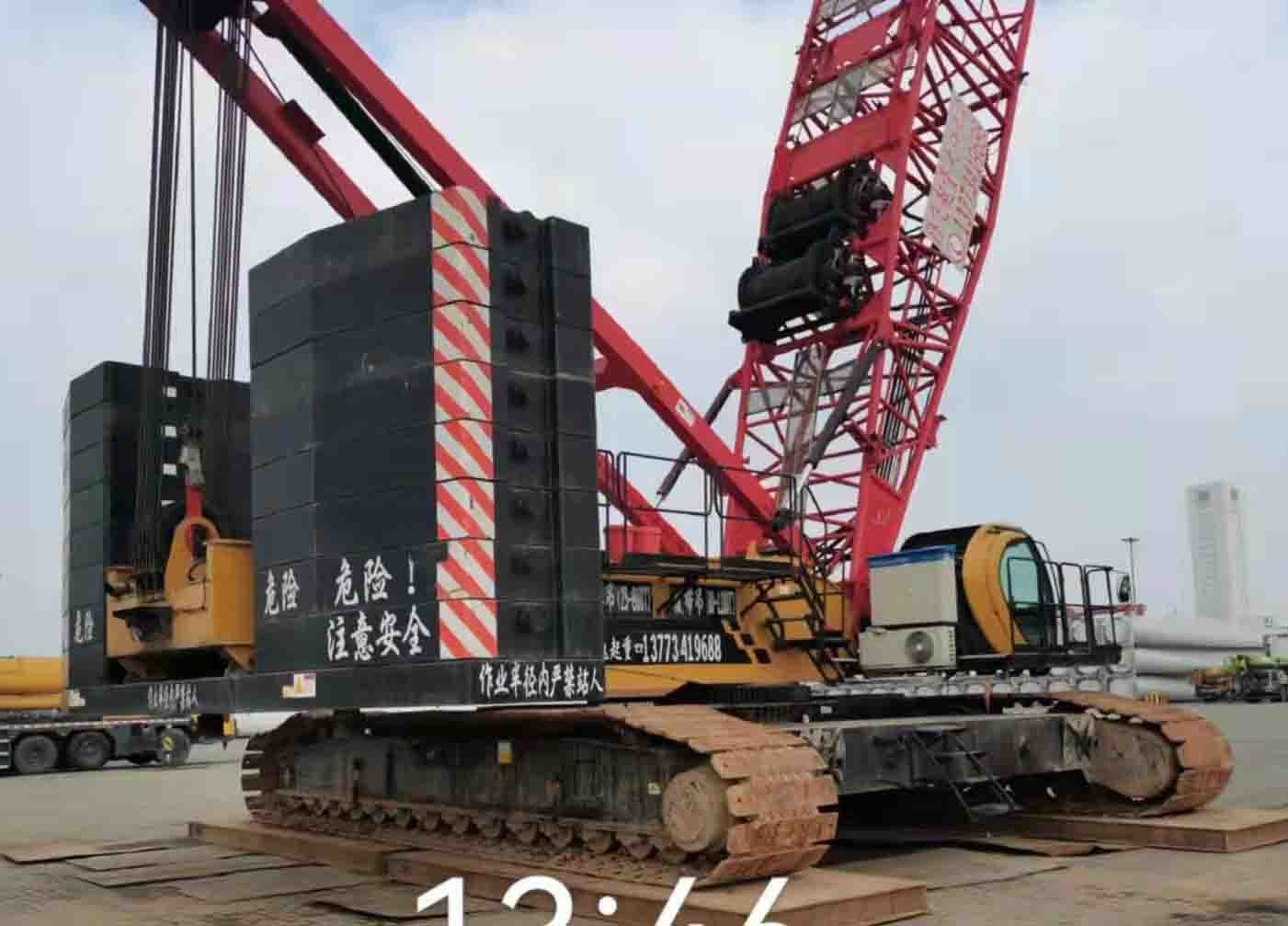

Used Sany 90 Tons Crawler Crane-Model 2019
| Product Discription | |||
| Sany SCC900HD Crawler Crane | Unit | Parameter | |
|
Boom Configuration |
Max. rated lifting capacity | t | 90 |
| Max. lifting moment | t·m | 365 | |
| Boom length | m | 13~55 | |
| Boom luffing angle | ° | 30~80 | |
|
Speed |
Rope speed of main/aux. load hoist winch (3rd layer) | m/min | 120 |
| Rope speed of boom hoist winch (3rd layer) | m/min | 59 | |
| Swing speed | rpm | 4 | |
| Travel speed | km/h | 1.8/0.9 | |
|
Wire rope |
Main and aux. hoist wire rope: diameter × length | mm | 28 |
| Single line pull of main/aux. load hoist wire rope | t | 13.5 | |
|
Engine |
model | – | QSL9-C325 |
| Rated power/revolution speed | kW/rpm | 242/2100 | |
|
Transport |
Weight of machine with basic boom | t | 90 |
| Rear counterweight | t | 30.3 | |
| Undercarriage counterweight | t | 3.2×2 | |
| Transport weight of basic machine (with crawler frames and boom base) | t | 48.1 | |
| Transport weight of basic machine (without crawlers and boom base) | t | 28.5 | |
| Machine transport dimension (with crawlers and boom base) L×W×H | mm | 13250×3490×3405mm | |
| Machine transport dimension (without crawlers and boom base) L×W×H | mm | 8300×3000×2960mm | |
| Other specifications | Average ground pressure (basic boom) | MPa | 0.085 |
| Gradeability | 30% | ||
