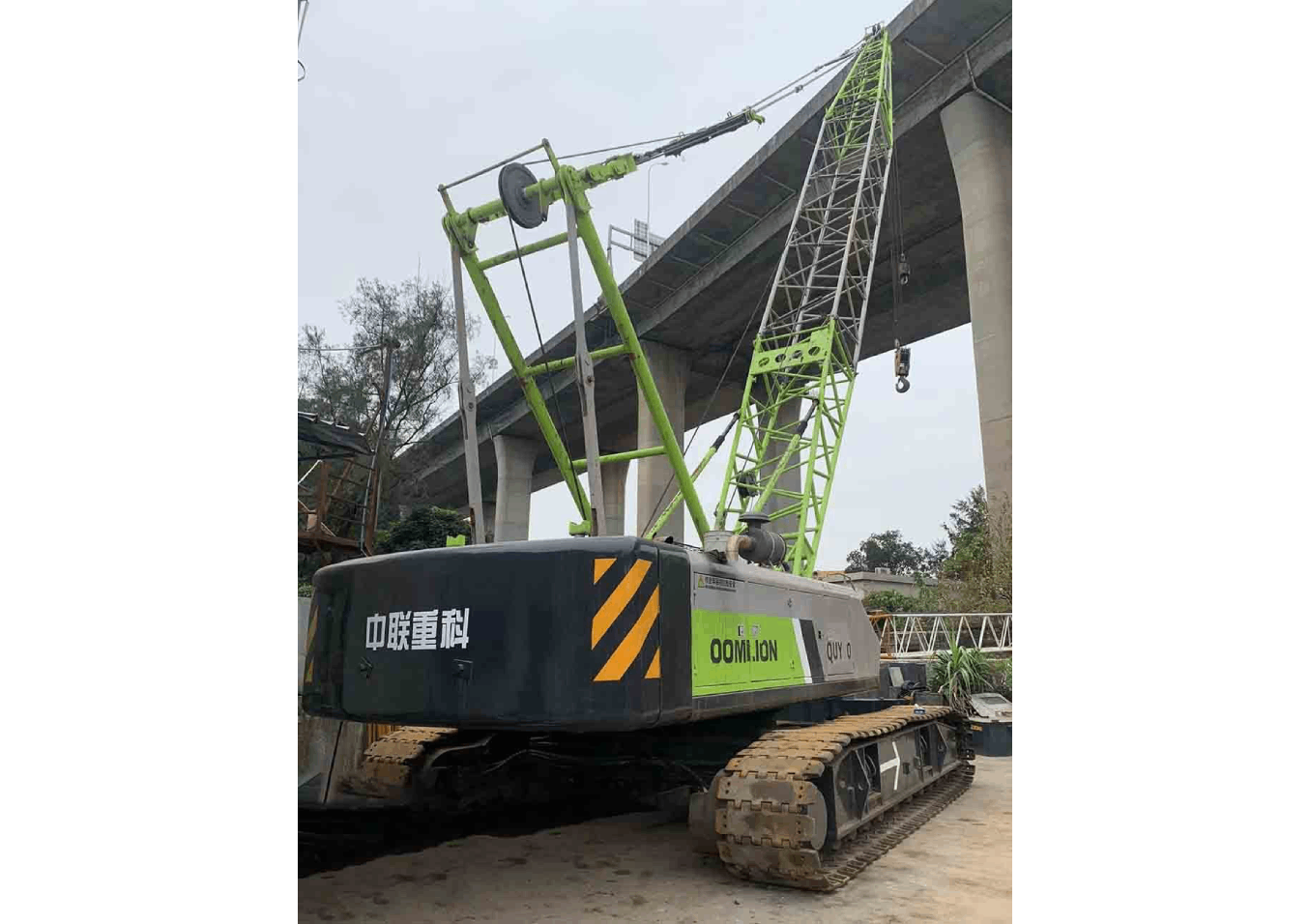

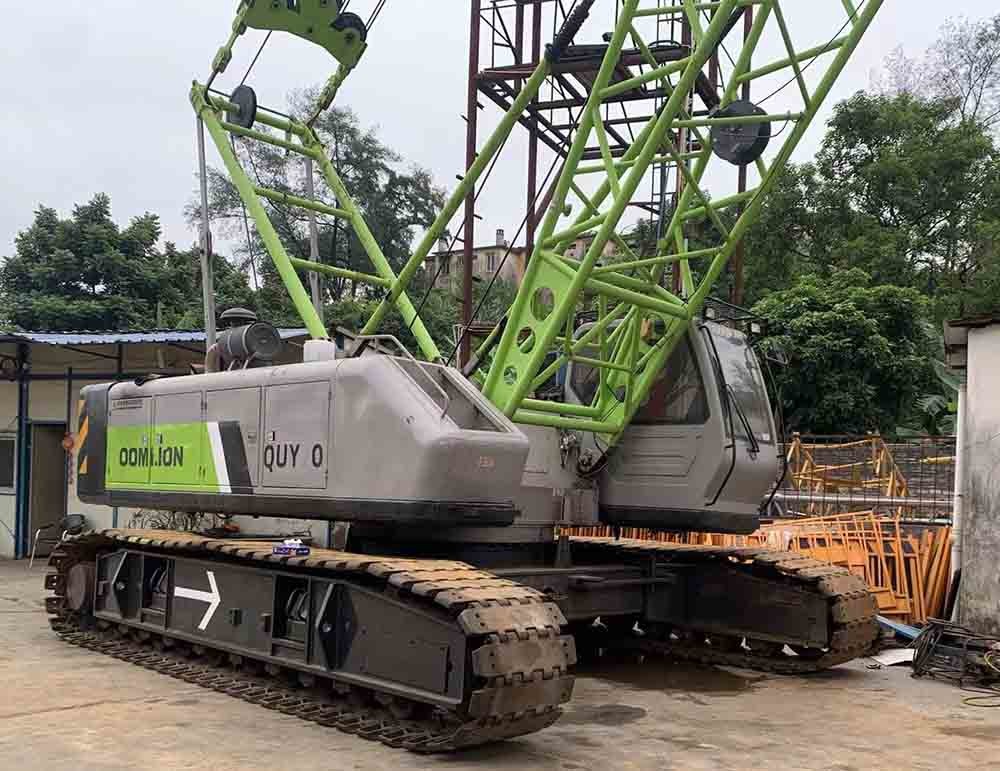

Used QUY80 Zoomlion 80 Ton Crawler Crane with 58m Boom Lenth

Product Details:

Place of Origin:	China
Brand Name:	Zoomlion
Model Number:	QUY80-Model 2016
Minimum Order Quantity:	1 unit
Packaging Details:	Containers, RORO ship, Cargo bulk ship
Delivery Time:	45-50 days after the down payment
Payment Terms:	T/T, L/C
Supply Ability:	15 untis per month

Model:	Zoomlion QUY80-Model 2016	Color:	Green
Max Lifting Capacity:	80 T	Boom Lenth:	13-58m
Dimensions:	13.5×3.4×3.2m	Total Weight With Booms:	70.8 T
Year:	2016	Brand:	Zoomlion
High Light:	Used Zoomlion 80 Ton Crawler Crane , crawler crane 80 ton Used , QUY80 Used crawler crane 80 ton

Used Zoomlion 80 Tons Crawler Crane-Model 2016

Zoomlion QUY80 crawler Crane			Value	Remarks
Max. lifting capacity × Radius t × m			80×4
Deadweight with basic boom t			70.8
Main boom length m			13~58
Fixed jib length m			6~18
Max. lifting capacity of fixed jibt			7
Offset angle of fixed jib°			10,30
Max. length of main boom with fixed jib m			49＋18
Max. speed of single rope on drum		120	120	The 4^th rope layer
		120	120	The 4^th rope layer
		61	45	The 4^th rope layer
Slewing speedrpm			1~2
Traveling speed km/h			1~1.68
Gradeability%			30
Ground pressure MPa			0.083
Overall dimensions (L×W×H) m			13.5×3.4×3.2m	ncl. mast, boom bottIom section
Engine	199/2200		153/2200 KW/rpm
	1100/1200~1600		929/1300 KW/rpm
	EU Stage III		Tier 3
Crawler gauge * ground contact length * track shoe width mm			4200×5440×800	Crawler carrier retracted
Crawler gauge * ground contact length * track shoe width mm			2600×5440×800	Crawler carrier extended

Used Zoomlion 80 Ton Crawler Crane
