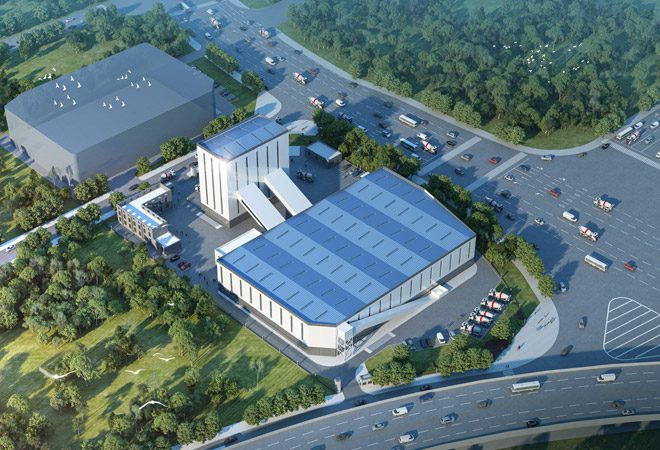

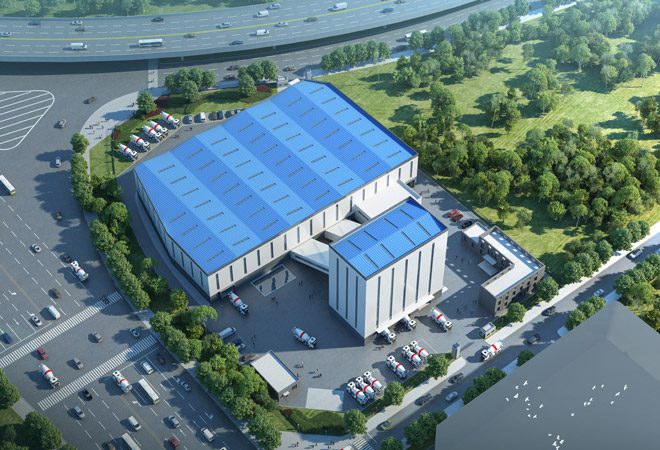

COMMERCIAL CONCRETE BATCHING PLANT
Suitable for large and medium-sized commercial concrete customers, with the best performance and the most comprehensive configuration. Production is efficient, precise and intelligent.
- Integrate and apply more than 10 new intelligent technologies to achieve self-adaptation of the entire production process, greatly reduce manual intervention, and reduce operating skill requirements and labor intensity.
- The modular design breaks down the equipment into independent prefabricated components, simplifies the on-site installation process, and makes installation easier and faster.
Specification
| Model | HZS120 | HZS180 | HZS240 | HZS270 | HZS300 |
| Theoretical productivity(m³/h) | 120 | 180 | 240 | 270 | 300 |
| Installed capacity(kW) | 210 | 250 | 280 | 350 | 350 |
| Nominal capacity(L) | 2000 | 3000 | 4000 | 4500 | 5000 |
| Unloading height(m) | ≥3.8 | ≥3.8 | ≥3.8 | ≥3.8 | ≥3.8 |
| Sandstone measuring range and accuracy(kg) | (600-2000)±2% | (900-3000)±2% | (900-4500)±2% | (900-5000)±2% | (900-5000)±2% |
| Cement measuring range and accuracy(kg) | (200-1200)±1% | (300-1800)±1% | (400-2500)±1% | (400-2600)±1% | (400-2600)±1% |
| Mixing powder measuring range and accuracy(kg) | (200-800)±1% | (200-1000)±1% | (200-1200)±1% | (300-1800)±1% | (300-1800)±1% |
| Water measuring range and accuracy(kg) | (150-500)±1% | (200-800)±1% | (200-1000)±1% | (200-1200)±1% | (200-1200)±1% |
| Additive measuring range and accuracy(kg) | (15-50)±1% | (15-80)±1% | (15-80)±1% | (20-100)±1% | (20-100)±1% |
Specification
The commercial concrete batching plant is an ideal choice for large and medium-sized commercial concrete customers. It has excellent performance, is equipped with an efficient forced mixer and a precise metering system, and can achieve intelligent control. At the same time, its configuration is perfect, covering a fully automated control system, an environmentally friendly dust removal device, and a multi-bin material storage system, which can meet diverse production needs, ensure stable concrete quality, and high production efficiency.
