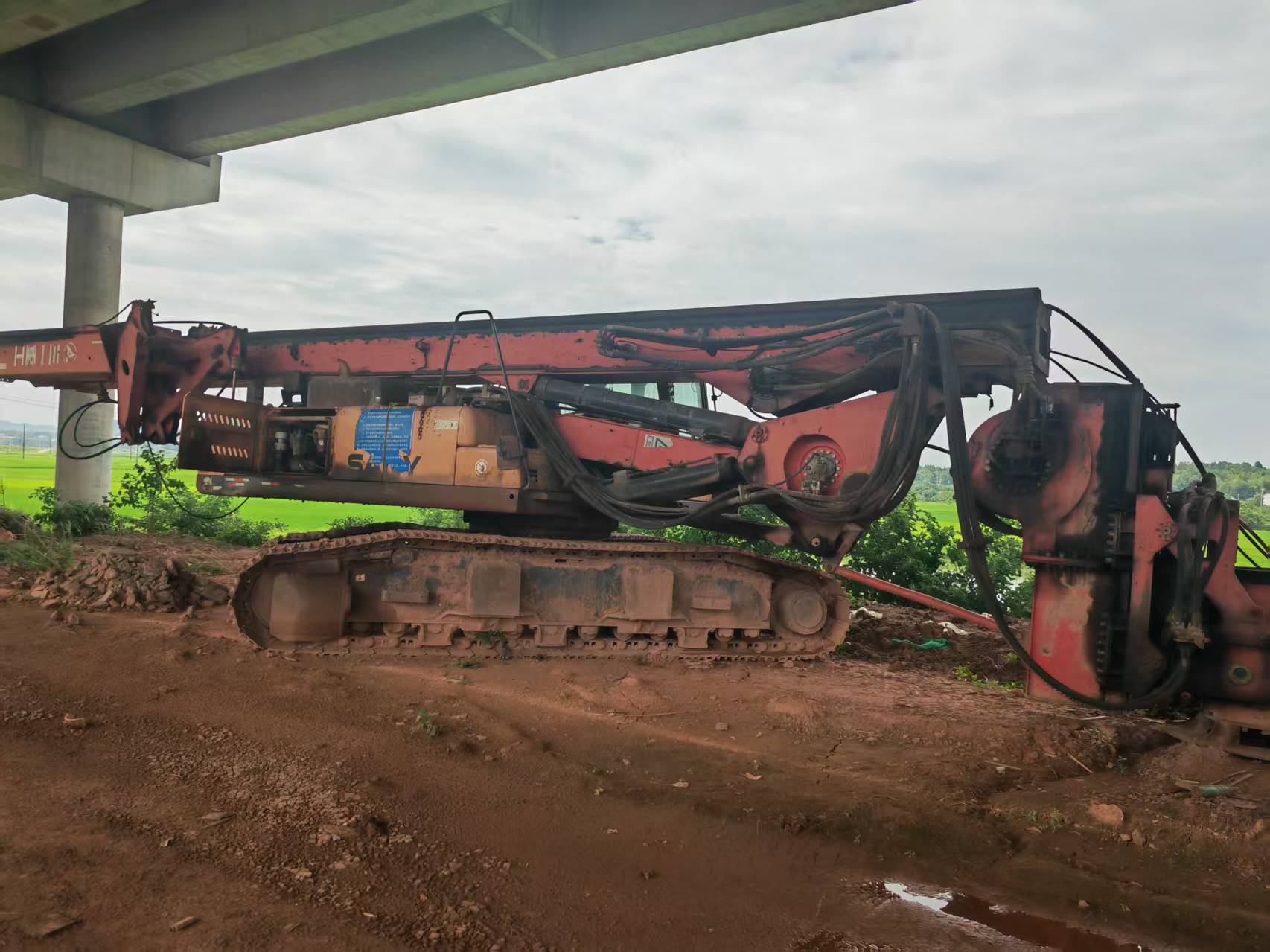

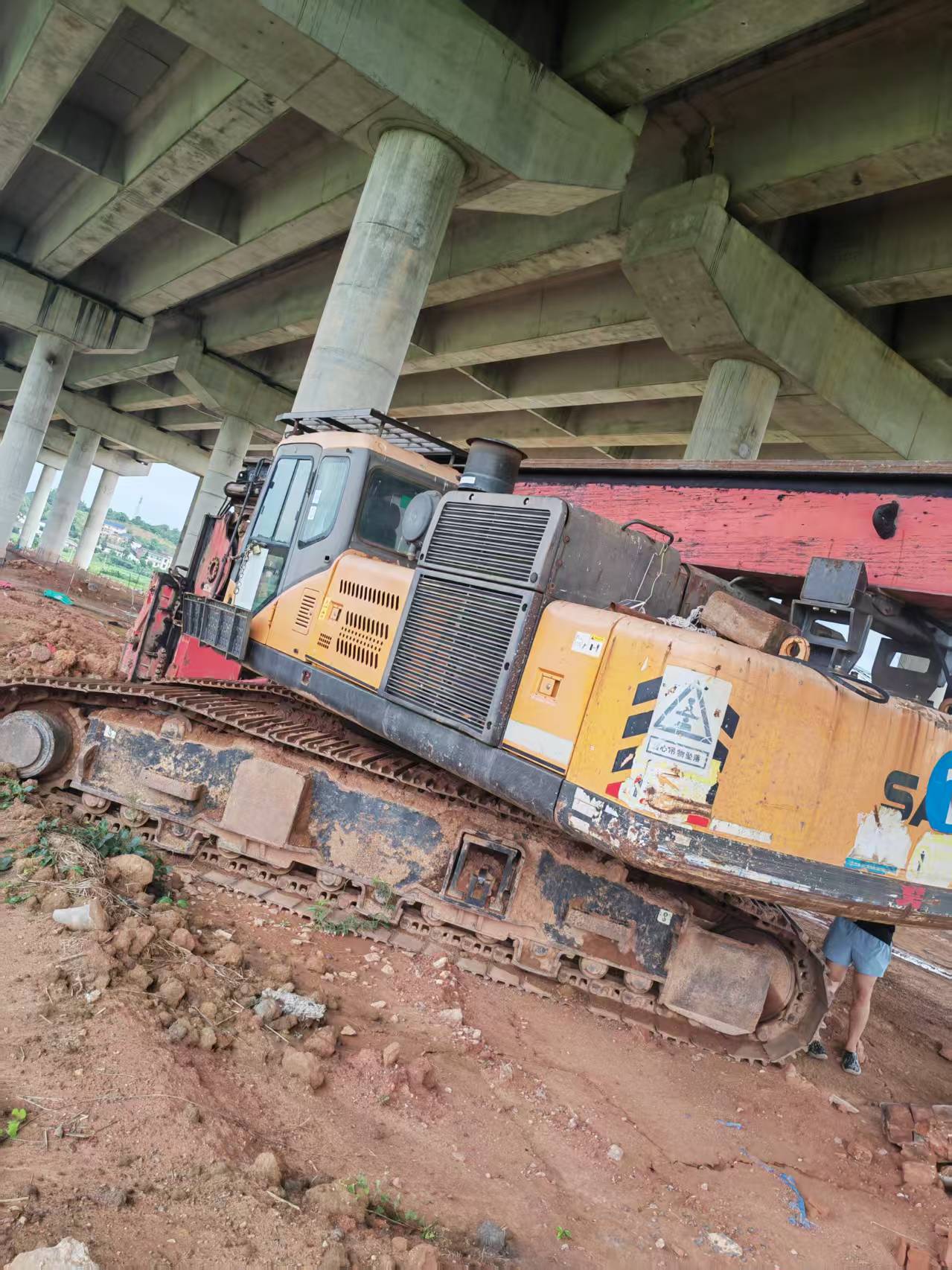

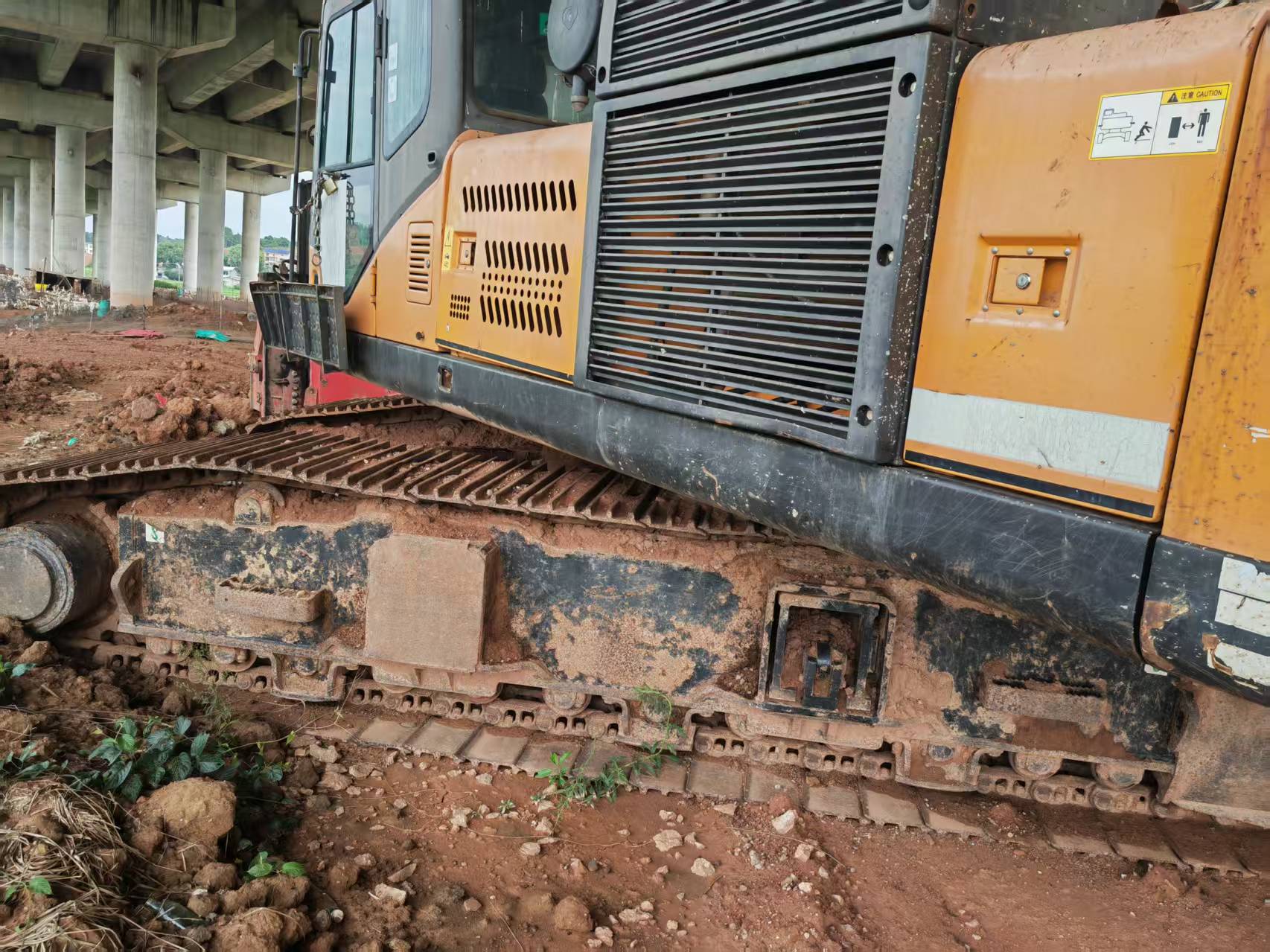

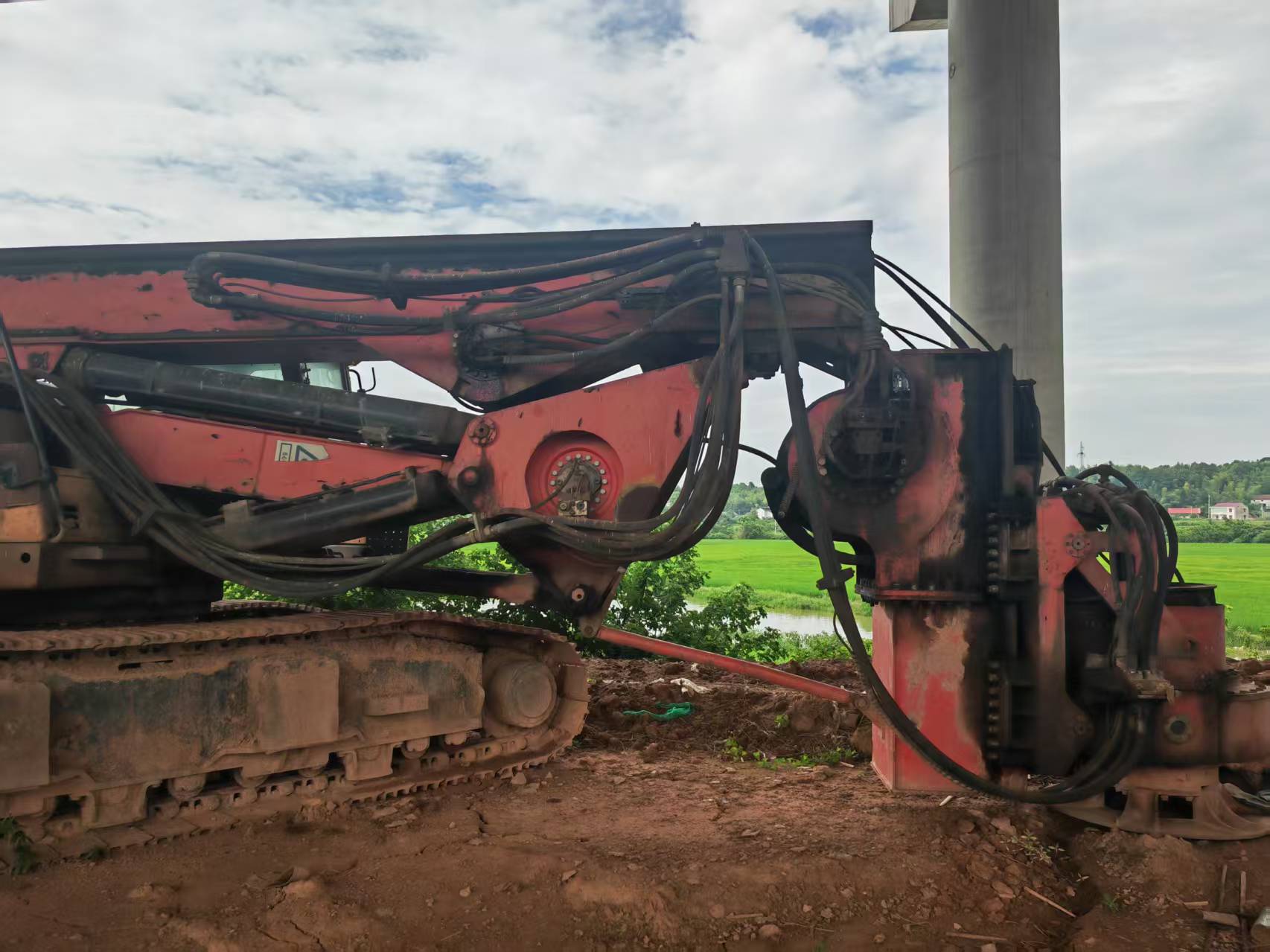

Used SANY SR280R Rotary Drilling Rig for Sale
This used SANY SR280R rotary drilling rig is available from ColorSky. It is equipped with a winch crowd system and includes an interlocking Kelly bar, Φ508 mm, 4 sections × 15 m.
Machine Offer
| সরঞ্জাম | Rotary Drilling Rig |
| Brand | সানি |
| মডেল | SR280R |
| জামাই ব্যবস্থা | Winch crowd system |
| Included Kelly Bar | Interlocking Kelly bar, Φ508 mm, 4 × 15 m |
| Price | USD 69,000, EXW China |
| Minimum Order | 1 unit |
| Shipping | RoRo ship or bulk cargo ship |
Reference Technical Specifications
| Maximum output torque | ২৮৫ কিলোনিউটন-মিটার |
| Maximum drilling diameter | 2,200 / 2,500 mm (depending on chassis/configuration) |
| Maximum drilling depth | 84 m |
| Rotary speed | 6–30 rpm |
| Maximum push | 350 kN |
| Crowd winch pull | 285 kN |
| Main winch pull | 256 kN |
| Main winch rope diameter | 32 mm |
| Main winch line speed | 63 m/min |
| Operating weight with Kelly bar | Approx. 72–76 t, depending on chassis |
Reference specifications are based on the SANY SR280R model brochure. Final configuration is subject to inspection of the actual machine.
Contact ColorSky
Contact us for machine details, photos, inspection information and operating videos.
WhatsApp: +86 135 0731 3969
Website: colorskyco.com
