DUAL-PURPOSE STATION

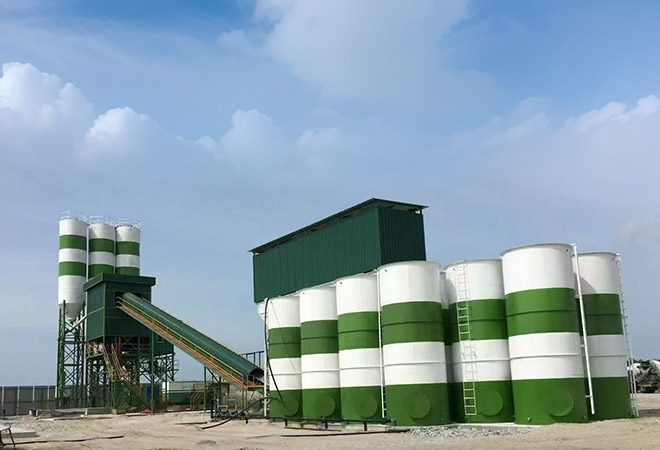

“One Station, Dual Purpose” — a concrete and ready-mixed mortar dual-use batching plant, professionally customized according to customer requirements.

Specification

Model	HZSD60	HZSD120	HZSD180
Theoretical productivity(m³/h)	30	60	90
Installed capacity(kW)	120	210	250
Nominal capacity(l)	1000	2000	3000
Unloading height(m)	≥3.8	≥3.8	≥3.8
Sandstone measuring range and accuracy(kg)	(400-1500)±2%	(600-2000)±2%	(900-3000)±2%
Cement measuring range and accuracy(kg)	(100-700)±1%	(200-1200)±1%	(300-1800)±1%
Mixing powder measuring range and accuracy(kg)	\	(200-800)±1%	(200-1000)±1%
Water measuring range and accuracy(kg)	(80-250)±1%	(150-500)±1%	(200-800)±1%
Additive measuring range and accuracy(kg)	(8-20)±1%	(15-50)±1%	(15-80)±1%

Specification

“One Station, Dual Purpose” — a concrete and ready-mixed mortar dual-use batching plant, professionally customized according to customer requirements. It is equipped with an independent fine sand screening system, a separate storage and weighing system for mortar additives, and advanced aggregate batching and metering systems. This allows for fast and seamless switching between the production of ready-mixed concrete and wet-mixed mortar, with simple and efficient operation.

The “One Station, Dual Purpose” concept not only successfully integrates new functionalities into the traditional batching plant but also represents an innovative step toward cost reduction and efficiency enhancement, aligning with the new norm of transformation and upgrading. With a one-time investment yielding multiple returns, this product significantly reduces land and labor costs for customers, greatly improving the utilization rates of both equipment and personnel.
