Vertical Reach：65.5m
Output：180m³/h
Pressure：13MPa
| Equipment Types |
Used ,Rental |
|---|
| Specification | Details |

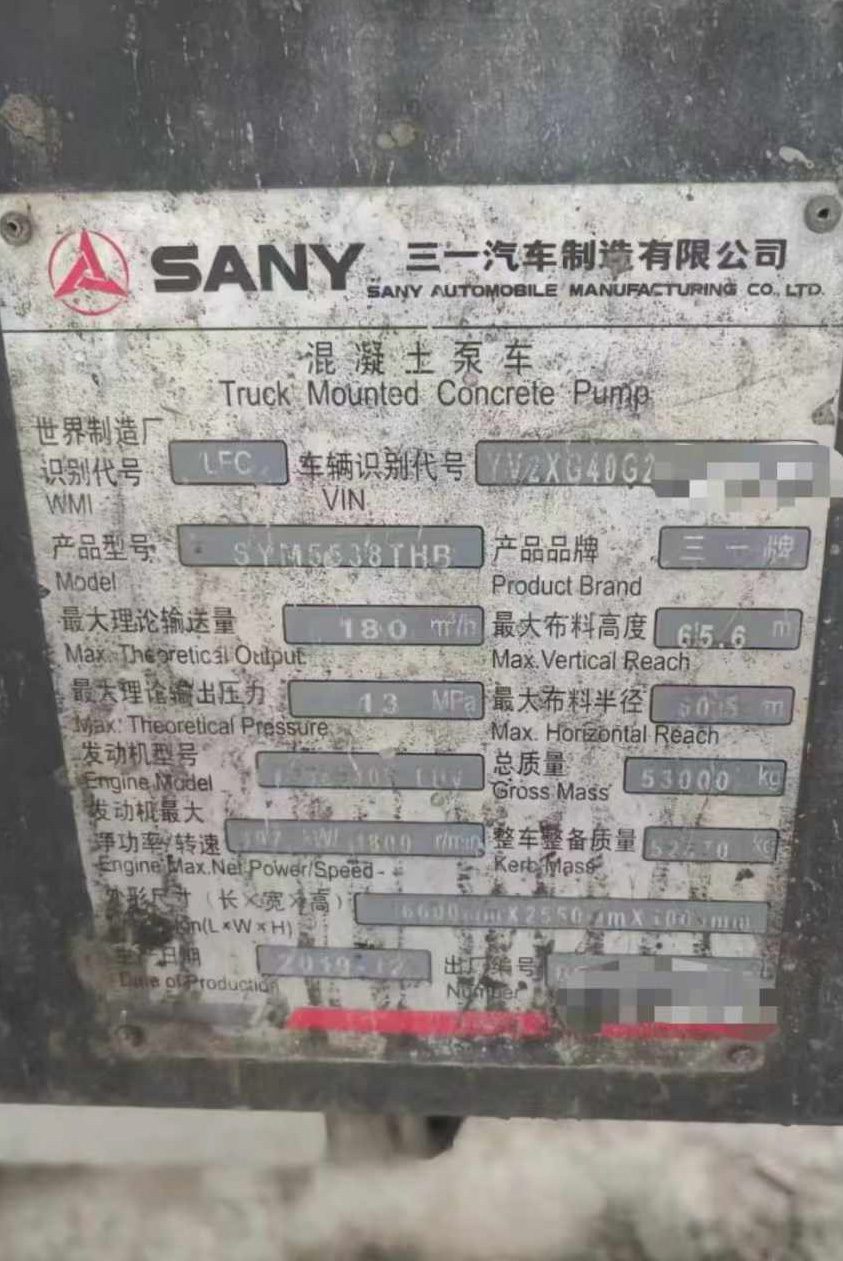

| Product Type | SYM5538THB |
| Manufacturer | SANY Automobile Manufacturing Co., Ltd. |
| Address | SANY Industrial Park, Changsha Economic and Technological Development Zone, Changsha City, Hunan Province |
| Date of Production | 2019.12 |
| Country of Manufacture | Made in China |
| Specification | Details |
| Max Vertical Reach | 65.5 m |
| Max Horizontal Reach | 60.5 m |
| Boom Structure | 6‑Arm, RZ Folding |
| Boom Section Lengths | 1st: 13,735 mm; 2nd: 10,615 mm; 3rd: 10,225 mm; 4th: 13,583 mm; 5th: 8,210 mm; 6th: 5,832 mm |
| Boom Section Angles | 1st: 89°; 2nd: 180°; 3rd: 180°; 4th: 230°; 5th: 180°; 6th: 100° |
| Specification | Details |
| Max Theoretical Output | 180 m³/h |
| Max Theoretical Pressure | 13MPa |
| Specification | Details |
| Engine Model | D13C540S EUV |
| Engine Max Net Power / Speed | 397 kW / 1,800 rpm |
| Theoretical Pumping Cycles | Low Pressure: 29 strokes/min; High Pressure: 19 strokes/min |
| Specification | Details |
| Kerb / Empty Weight | 53,000 kg |
| Overall Length | 16,600 mm |
| Overall Width | 2,550 mm |
| Overall Height | 4,000 mm |
| Delivery Cylinder Bore | 260 mm |
| Delivery Cylinder Stroke | 1,900 mm |
| Specification | Details |
| Fuel Tank Capacity | 880 L |
| Water Tank Capacity | 700 L |
| Outrigger Spread (Front) | 12,444 mm |
| Outrigger Spread (Rear) | 15,102 mm |
| Specification | Details |
| Chassis Brand/Model | Volvo FM540‑104R B |
| Emission Standard | Euro V / Country V |
| Chassis Drive | 8×4 |
| Max Road Speed | 85 km/h |
Product Details

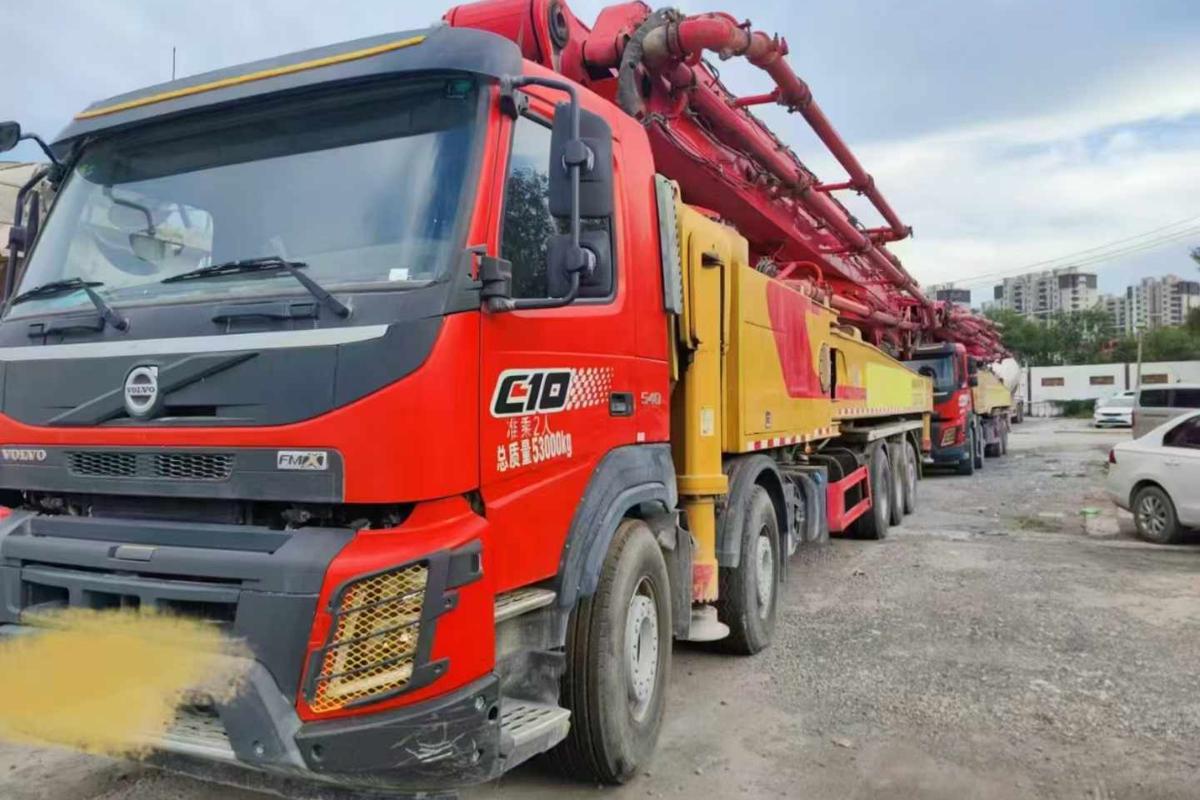

The used SANY 66M Truck Mounted Concrete Pump is now available for sale.
Well-maintained and ready for immediate operation.
Specifications
| Equipment | Truck Mounted Concrete Pump |
| Place of Origin | China |
| Brand Name | Sany |
| Model Number | SYM5638THB 66M |
| Date of Manufacture | 2019-12 |
| Minimum Order Quantity | 1 section |
| Packaging Details | Roro Ship, Cargo Bulk Ship |
