Vertical Reach：70.2m
Output：180m³/h
Pressure：12MPa
| Equipment Types |
Sale ,Used |
|---|
| Category | Parameter | Unit | Value |
| Vehicle | Overall length | mm | 16090 |
| Vehicle | Overall width | mm | 2550 |
| Vehicle | Overall height | mm | 4000 |
| Vehicle | Gross weight | kg | 55000 |
| Boom Main Dimensions | Vertical reach | m | 70.2 |
| Boom Main Dimensions | Horizontal reach | m | 63.5 |
| Boom Main Dimensions | Depth below level (incl. 3 m hose) | m | 50.3 + 3 |
| Boom Main Dimensions | Minimum unfolding height | m | 16.9 |
| Boom Articulation Angles | 1st arm section angle | ° | 89 |
| Boom Articulation Angles | 2nd arm section angle | ° | 180 |
| Boom Articulation Angles | 3rd arm section angle | ° | 180 |
| Boom Articulation Angles | 4th arm section angle | ° | 230 |
| Boom Articulation Angles | 5th arm section angle | ° | 180 |
| Boom Articulation Angles | 6th arm section angle | ° | 200 |
| Boom Articulation Angles | Slewing turret rotation | ° | ±360 |
| Outrigger Spreads | Front outrigger spread | mm | 12110 |
| Outrigger Spreads | Rear outrigger spread | mm | 14990 |
| Pumping System | Theoretical concrete output | m³/h | 180 |
| Pumping System | Theoretical discharge pressure | MPa | 12 |
| Pumping System | Theoretical strokes | strokes/min | 27 ± 1 |
| Pumping System | Delivery cylinder bore | mm | 260 |
| Pumping System | Delivery cylinder stroke | mm | 2100 |
| Pumping System | Hydraulic system type | — | Open |
| Pumping System | System working pressure | MPa | 42 |
| Pumping System | Hydraulic oil tank capacity | L | 960 |
| Pumping System | Water tank capacity | L | 750 + 750 |
| Pumping System | Delivery pipeline diameter | mm | 125 |
| Pumping System | End hose length | m | 3 |
| Pumping System | End hose diameter | mm | 125 |
| Chassis | Chassis model | — | SYM5551THB1F |
| Chassis | Engine model | — | D13C6-530E4 |
| Chassis | Engine max net power | kW / rpm | 390 / 1900 |
| Chassis | Emission standard | — | China VI |
| Chassis | Fuel tank capacity | L | 600 |
| Chassis | Engine displacement | L | 12.94 |
| Chassis | Maximum road speed | km/h | 90 |
Product Details

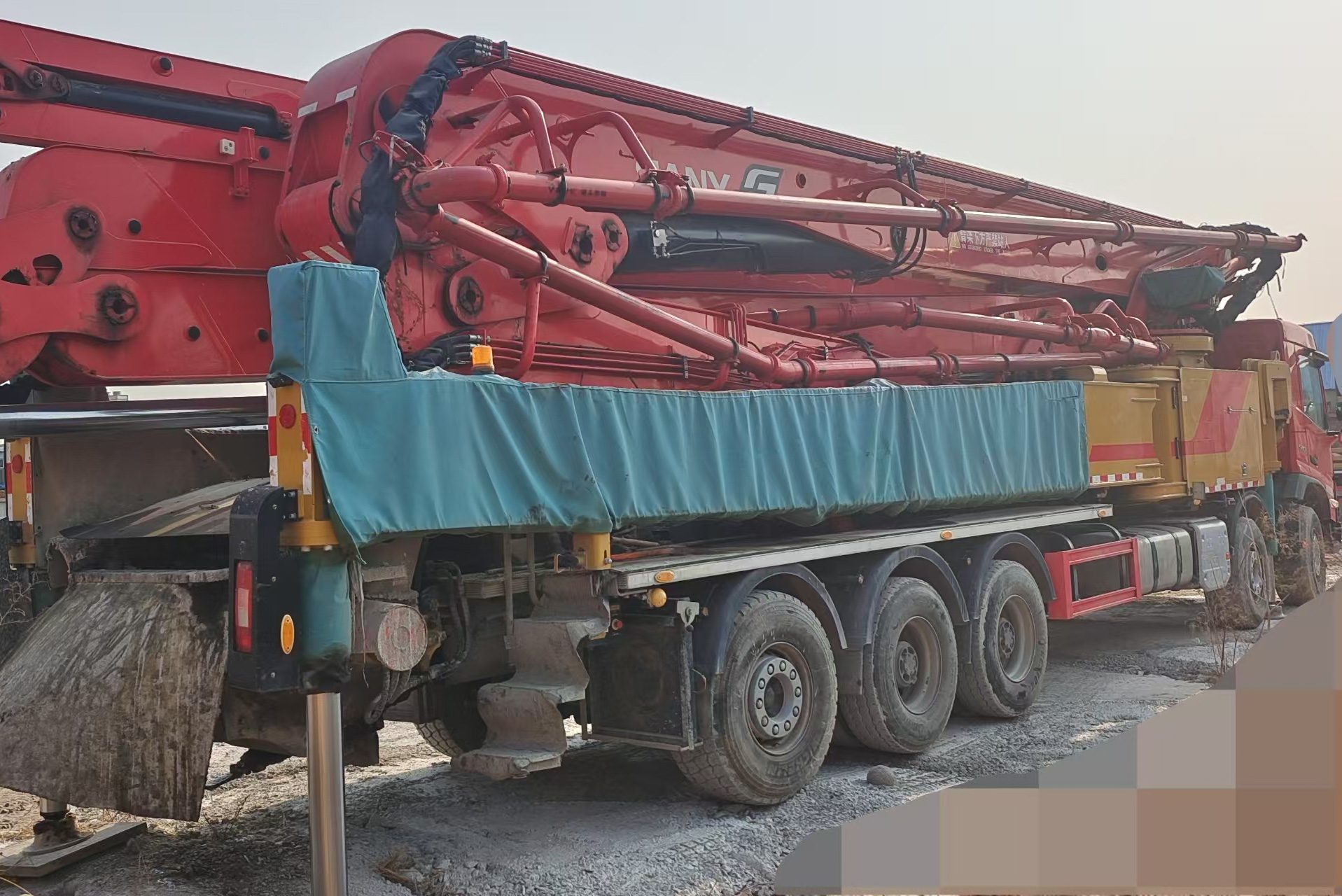

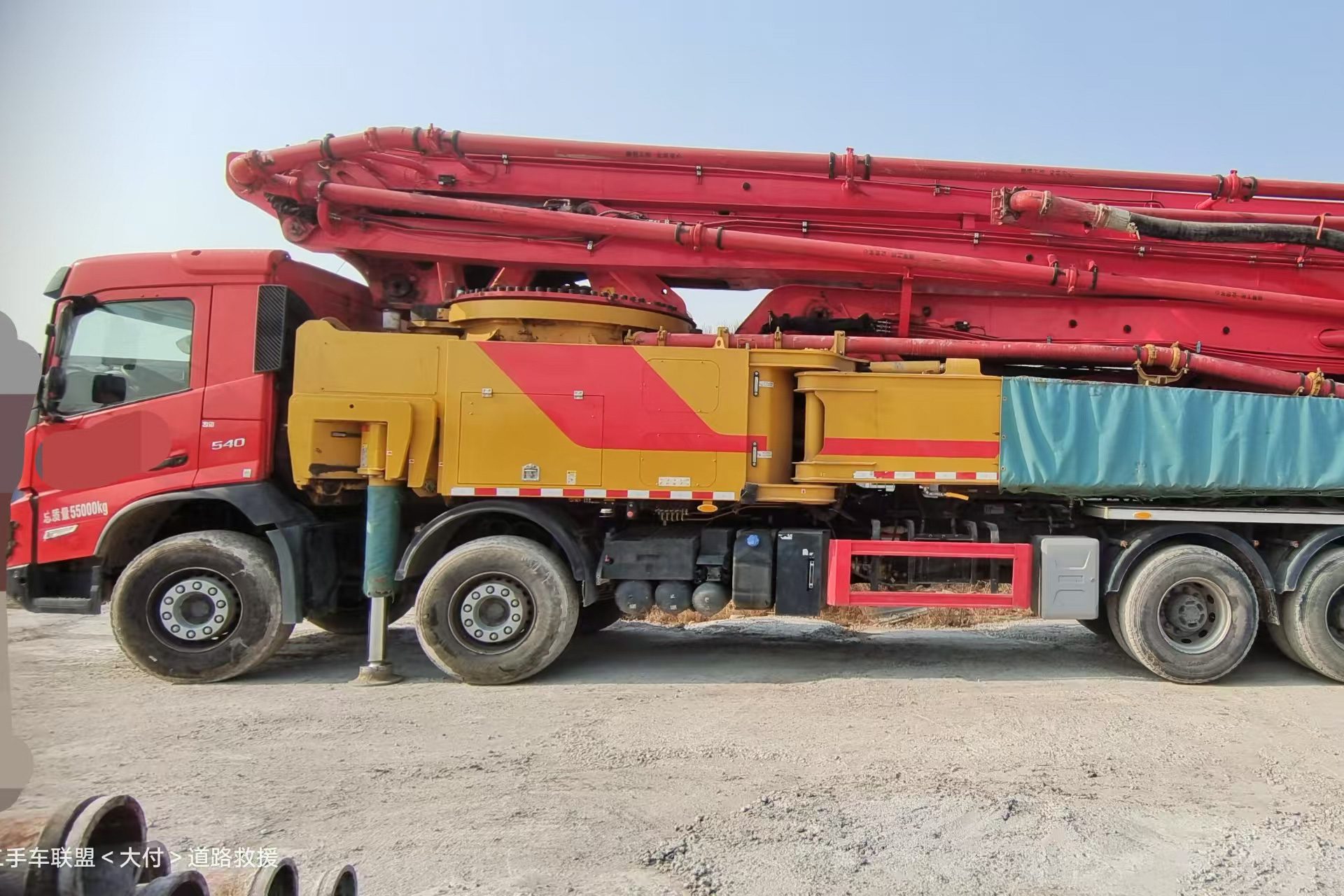

The used SANY 71M Truck Mounted Concrete Pump is now available for sale.
Well-maintained and ready for immediate operation.
Specifications

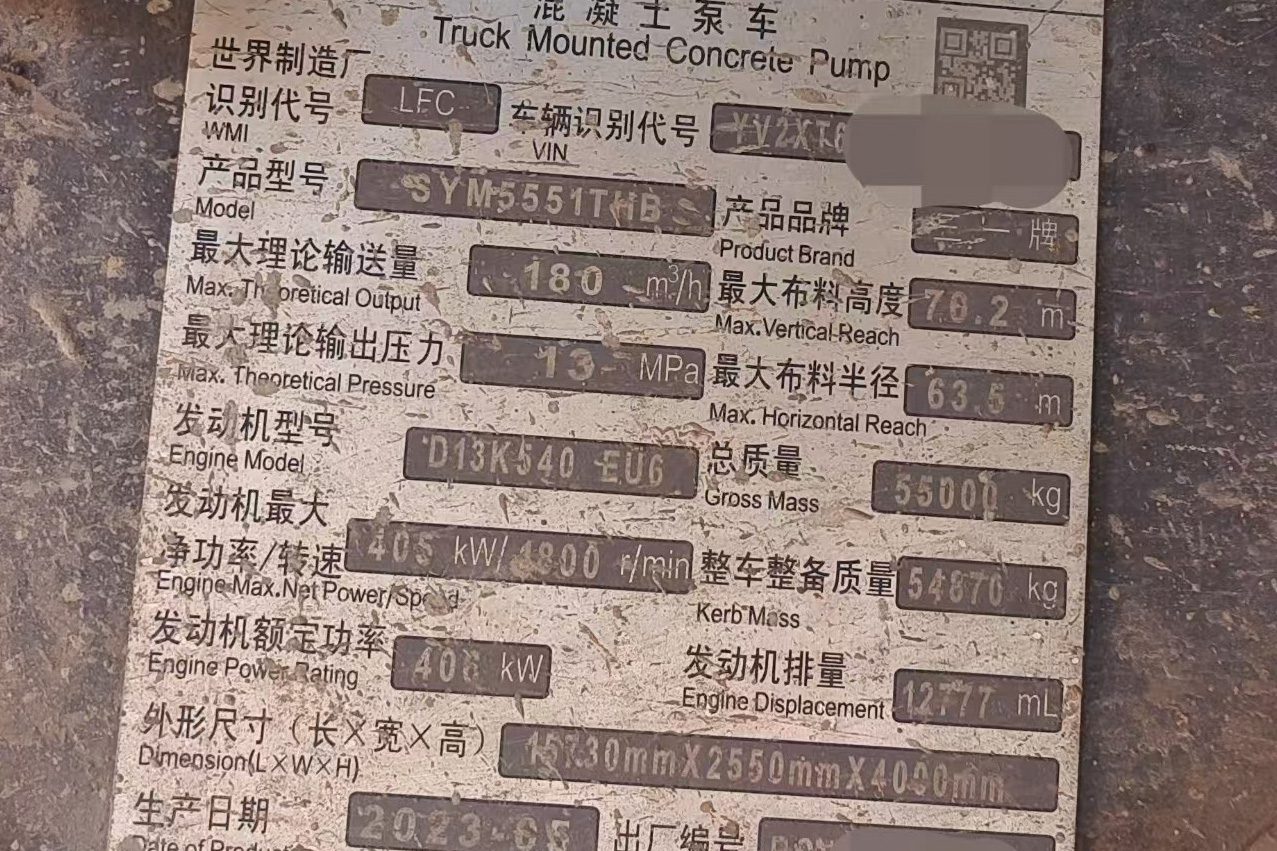

| Equipment | Truck Mounted Concrete Pump |
| Place of Origin | China |
| Brand Name | Sany |
| Model Number | SYM5551THB 71M |
| Date of Manufacture | 2023-05 |
| Minimum Order Quantity | 1 section |
| Packaging Details | Roro Ship, Cargo Bulk Ship |
