Sany SYM5465THBF 62m Used Concrete Pump Truck 202207
General Information
| Specification | Details |
| Product Type | SYM5465THBF |
| Manufacturer | SANY Automobile Manufacturing Co., Ltd. |
| Address | SANY Industrial Park, Changsha Economic and Technological Development Zone, Changsha City, Hunan Province |
| Date of Production | 2022.07 |
| Country of Manufacture | Made in China |
Boom Specifications
| Specification | Details |
| Max Vertical Reach | 61.1 m |
| Max Horizontal Reach | 54.4 m |
| Boom Structure | 6‑Arm, RZ Folding |
Pumping System
| Specification | Details |
| Max Theoretical Output | 180 m³/h |
| Max Theoretical Pressure | 13MPa |
Engine
| Specification | Details |
| Engine Model | D13C6-480E0 |
| Engine Max Net Power / Speed | 348 kW / 1,900 rpm |
| Engine Rated Power | 353kW |
| Engine Displacement | 12,940mL(12.94L) |
Weight & Dimensions
| Specification | Details |
| Kerb / Empty Weight | 45,870 kg |
| Overall Length | 14,720 mm |
| Overall Width | 2,550 mm |
| Overall Height | 4,000 mm |
| Gross Vehicle Weight: | 46,000 kg |
Sany SYM5552THB 71m Used Concrete Pump Truck 202304
SANY Concrete Pump Truck Technical Data — SYM5552THB 71
General Information
| Specification | Details |
| Product Type | SYM5551THB1F |
| Manufacturer | SANY Automobile Manufacturing Co., Ltd. |
| Address | SANY Industrial Park, Changsha Economic and Technological Development Zone, Changsha City, Hunan Province |
| Date of Production | 2023.04 |
| Country of Manufacture | Made in China |
Boom Specifications
| Specification | Details |
| Max Vertical Reach | 70.2 m |
| Max Horizontal Reach | 63.5 m |
Pumping System
| Specification | Details |
| Max Theoretical Output | 180 m³/h |
| Max Theoretical Pressure | 13MPa |
Engine
| Specification | Details |
| Engine Model | D13C6-530E4 |
| Engine Max Net Power / Speed | 385 kW / 1,900 rpm |
| Engine displacement | 12.94L |
Weight & Dimensions
| Specification | Details |
| Kerb / Empty Weight | 55,000 kg |
| Overall Length | 16,090 mm |
| Overall Width | 2,550 mm |
| Overall Height | 4,000 mm |
| Delivery Cylinder Bore | 260 mm |
| Delivery Cylinder Stroke | 2,100 mm |
Outriggers
| Specification | Details |
| Fuel Tank Capacity | 600 L |
| Water Tank Volume | 750 + 750 L |
| Outrigger Spread (Front) | 12110mm |
| Outrigger Spread (Rear) | 14990mm |
Key Features
| Specification | Details |
| Emission Standard | China VI |
| Maximum road speed | 90km/h |
Sell 2020 years concrete mixer truck country six emission standards using HOWo chassis
2023 Zoomlion concrete pump truck 38 meters installed FAW Jiefang chassis for sale
1.concrete pump truck manufacturers
2.concrete pump truck Direct sale in stock
3.second hand pump truck
Under very good condition
Perfect original condition 38 m with 2 axles.
Strict and professional workshop
Stable working and all fuctions are nomal.
With FAW Jiefang Chassis.
We do professional repair, provide high quality equipment to our customers.
Main Parameter:
| Equipment for concrete | |
| Pump year | 2023 year |
| Boom sections | 2 SECTIONS RZ FOLD |
| Vertical Reach | 37.1m |
| Horizontal Reach | 32.36m |
| Max Concrete Output | 125 m3/h |
| Conrete Press | 13 MPa |
| Radio Remote conctrol | concrete pump remote controller |
| Radio Remote Brand | remote controller HBC |
| Condition | Used but stable condition |
| Repair standard | Basic maintenance |
| Truck brand | Jiefang Chassis |
| Engine Type | Diesel |
| Max.Engine Power | 252kw |
| Dimension(L*W*H) | 9950mm*2550*3960mm |
| Total Weight | 23000kg |
| Maintenance items | Hopper accessory; sheet metal;check and test all system; cleaning |
SYM5552THB 71m Sany Used Concrete Pump Truck 202306
Used SYM5552THB 71 Concrete Pump Truck Technical Data
| Category | Parameter | Unit | Value |
| Vehicle | Overall length | mm | 16090 |
| Vehicle | Overall width | mm | 2550 |
| Vehicle | Overall height | mm | 4000 |
| Vehicle | Gross weight | kg | 55000 |
| Boom Main Dimensions | Vertical reach | m | 70.2 |
| Boom Main Dimensions | Horizontal reach | m | 63.5 |
| Boom Main Dimensions | Depth below level (incl. 3 m hose) | m | 50.3 + 3 |
| Boom Main Dimensions | Minimum unfolding height | m | 16.9 |
| Boom Articulation Angles | 1st arm section angle | ° | 89 |
| Boom Articulation Angles | 2nd arm section angle | ° | 180 |
| Boom Articulation Angles | 3rd arm section angle | ° | 180 |
| Boom Articulation Angles | 4th arm section angle | ° | 230 |
| Boom Articulation Angles | 5th arm section angle | ° | 180 |
| Boom Articulation Angles | 6th arm section angle | ° | 200 |
| Boom Articulation Angles | Slewing turret rotation | ° | ±360 |
| Outrigger Spreads | Front outrigger spread | mm | 12110 |
| Outrigger Spreads | Rear outrigger spread | mm | 14990 |
| Pumping System | Theoretical concrete output | m³/h | 180 |
| Pumping System | Theoretical discharge pressure | MPa | 12 |
| Pumping System | Theoretical strokes | strokes/min | 27 ± 1 |
| Pumping System | Delivery cylinder bore | mm | 260 |
| Pumping System | Delivery cylinder stroke | mm | 2100 |
| Pumping System | Hydraulic system type | — | Open |
| Pumping System | System working pressure | MPa | 42 |
| Pumping System | Hydraulic oil tank capacity | L | 960 |
| Pumping System | Water tank capacity | L | 750 + 750 |
| Pumping System | Delivery pipeline diameter | mm | 125 |
| Pumping System | End hose length | m | 3 |
| Pumping System | End hose diameter | mm | 125 |
| Chassis | Chassis model | — | SYM5551THB1F |
| Chassis | Engine model | — | D13C6-530E4 |
| Chassis | Engine max net power | kW / rpm | 390 / 1900 |
| Chassis | Emission standard | — | China VI |
| Chassis | Fuel tank capacity | L | 600 |
| Chassis | Engine displacement | L | 12.94 |
| Chassis | Maximum road speed | km/h | 90 |
Used 46m Putzmeister Concrete Pump Truck 201003
General Information
| Specification | Details |
| Product Type | CYH51W |
| Manufacturer | Putzmeister |
| Date of Production | 2010.03 |
| Country of Manufacture | Made in Japan |
Boom Specifications
| Specification | Details |
| Boom Model | M46-5RZ |
| Max Vertical Reach | 45.5m |
| Max Horizontal Reach | 40.5 m |
Pumping System
| Specification | Details |
| Maximum concrete output | 160m³/h |
| Maximum hydraulic pressure | 310 bar |
Engine
| Specification | Details |
| Engine Model | 6WG1G |
| Engine Max Net Power | 287 kW |
Weight & Dimensions
| Specification | Details |
| Kerb / Empty Weight | 32,000 kg |
| Overall Length | 11,850 mm |
| Overall Width | 2,500 mm |
| Overall Height | 4,000 mm |
Key Features
| Specification | Details |
| Pump Chassi | ISUZU |
| Maximum concrete output | 160m³/h |
| Maximum concrete pressure | 85bar |
| Max. Road Speed | 76 km/h |
Used 49m Putzmeister Concrete Pump Truck 201405
General Information
| Specification | Details |
| Product Type | SG5392THB |
| Manufacturer | Putzmeister |
| Date of Production | 2014.05 |
| Country of Manufacture | Made in Japan |
Boom Specifications
| Specification | Details |
| Boom Model | M49-5RZ |
| Max Vertical Reach | 48.1m |
| Max Horizontal Reach | 44.1 m |
Pumping System
| Specification | Details |
| Maximum concrete output | 148m³/h |
| Maximum hydraulic pressure | 310 bar |
Engine
| Specification | Details |
| Engine Model | 6WG1G |
| Engine Max Net Power /speed | 294 kW /1685rpm |
Weight & Dimensions
| Specification | Details |
| Kerb / Empty Weight | 39,130 kg |
| Overall Length | 13,675 mm |
| Overall Width | 2,490 mm |
| Overall Height | 3,970 mm |
Key Features
| Specification | Details |
| Pump Chassi | ISUZU |
| Maximum concrete output | 148m³/h |
| Maximum concrete pressure | 85bar |
| Max. Road Speed | 76 km/h |
Used Bauer BG26 Rotary Drilling Rig 2017
Main Technical Specifications
| Engine | CAT/Deutz, approx. 280–300 kW |
| Operating Weight | 75 – 80 t |
| Max. Drilling Depth | up to 70 m |
| Max. Drilling Diameter | up to 2000 mm |
| Kelly Bar | 4x or 5x friction/lockable Kelly |
| Crowd Force | approx. 200 kN |
| Main Winch Pull Force | approx. 200 kN |
| Auxiliary Winch | approx. 80 kN |
| Undercarriage | Heavy-duty crawler, extendable tracks |
| Counterweight | Modular, 25t blocks |
Hydraulic System
| System Type | Load-sensing hydraulic system |
| Max. Flow | 2 × 300 L/min |
| Max. Pressure | 350 bar |
Dimensions (Transport)
| Length | Approx. 17 m |
| Width | Approx. 3.0 m |
| Height | Approx. 3.4 m |
Used Bauer BG42 Rotary Drilling Rig 2021
Technical Data Sheet
| Equipment | Rotary Drilling Rig |
| Model | Bauer BG42( ValueLine) |
| Year of Manufacture | 2021.09 |
| Manufacturer | Bauer Tianjin Technologies Co., Ltd. |
| Certification | ISO 9001 Approved, September 2021 |
Main Technical Specifications
| Engine | Volvo TAD 13 |
| Rated Power | 405 kW @ 1,900 rpm |
| Operating Weight | 140 t |
| Max. Drilling Depth | up to 115 m |
| Max. Drilling Diameter | up to 3000 mm |
| Kelly Bar | 4x or 5x friction/lockable Kelly |
| Crowd Force | approx. 420 kN |
| Main Winch Pull Force | approx. 420 kN |
| Auxiliary Winch | approx. 100 kN |
| Undercarriage | Heavy-duty crawler, extendable tracks |
| Counterweight | Modular, 29.4t blocks |
| Max. Speed | 30 rpm |
Hydraulic System
| System Type | Load-sensing hydraulic system |
| Max. Flow | 9000 L/min |
| Max. Pressure | 320 bar |
Dimensions (Transport)
| Length | Approx. 19.5 m |
| Width | Approx. 33.8 m |
| Height | Approx. 4.78 m |

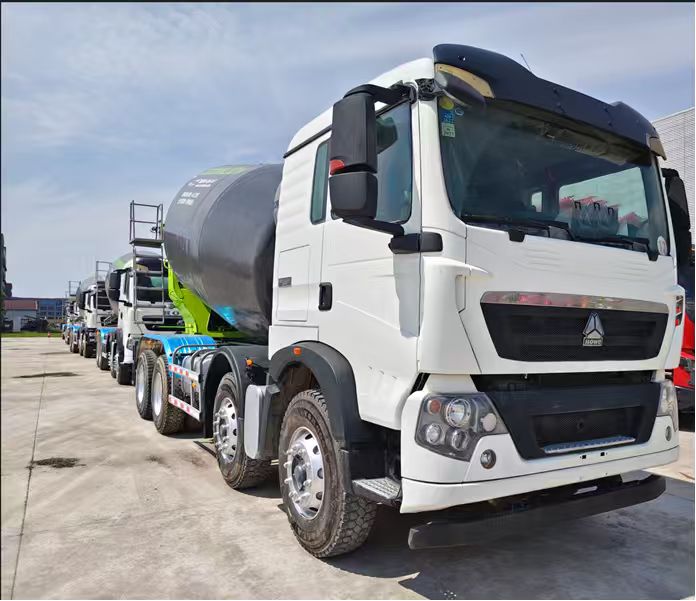

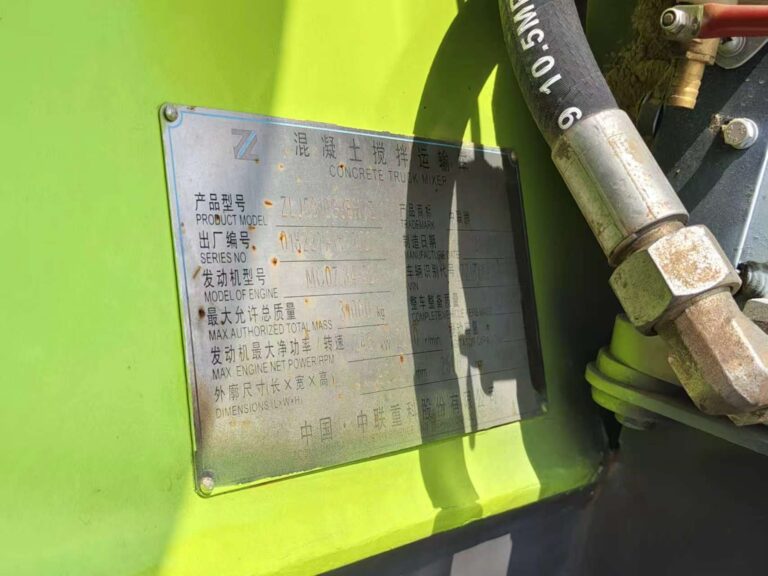

Used Concrete Truck Mixer Zoomlion ZLJ5311GJB(F)
Vehicle Specifications
| Geometric Capacity | ≈ 12-13 m³ |
| Drum Filling Ratio | 60–65% |
| Drum Rotation Speed (Charging / Discharging) | 0–14 rpm / 0–17 rpm |
| Water Supply System | Air pressure water tank, 400 L |
| Feeding Speed | ≥ 3 m³/min |
| Discharge Speed | ≥ 2 m³/min |
| Discharge Residue Rate | ≤ 0.5% |
| Complete Vehicle Kerb Mass | ≈ 14,000–15,000 kg |
| Maximum Authorized Gross Mass | 31,000 kg |
| Seating Capacity | 2 persons |
| Axle Configuration | 8×4 |
| Brake System | Full air brake with ABS |
| Fuel Tank Capacity | 400 L |
| Overall Dimensions (L×W×H) | 10,400 × 2,525 × 3,980 mm |
Engine Specifications
| Engine Model | DDi75E-340-60 |
| Engine Type | Diesel, 6-cylinder, turbocharged, intercooler |
| Max. Net Power / Speed | 245 kW / 2200 rpm |
| Rated Power | 340 hp |
| Displacement | 7.7 L |
| Emission Standard | China VI (Euro VI equivalent) |
Transmission & Drive System
| Transmission Type | Manual, 10 forward / 2 reverse |
| Drive Axle | Double reduction, heavy-duty type |
| Differential Lock | Equipped |
Dimension & Performance
| Wheelbase | 1850 + 3050 + 1350 mm |
| Front / Rear Track | 2022 / 1830 mm |
| Minimum Ground Clearance | 260 mm |
| Minimum Turning Radius | ≤ 12 m |
| Maximum Speed | 85 km/h |
| Gradeability | ≥ 30% |
Mixer System
| Hydraulic Pump Model | Rexroth / Kawasaki (typical) |
| Hydraulic Motor Model | Rexroth / Eaton |
| Reducer Model | ZF / PMP |
| Control System | Manual + Electronic |
| Drum Material & Thickness | High-strength steel, 5 mm (cylinder), 6 mm (end plate) |
Production & Quality
| Factory Certifications | ISO9001, CE Certification |
| Compliance Standards | Chinese GB/T 19001, European Machinery Directive |
| Country of Production | China |
Used SANY Concrete Truck Mixer 2021 | SYM5311GJB1E6
Vehicle Specifications
| Agitator Drum Capacity (Rated) | 7.68 m³ |
| Geometric Capacity | ≈ 12 m³ (typical) |
| Drum Filling Ratio | Approx. 63% |
| Drum Rotation Speed (Charging / Discharging) | 0–14 rpm / 0–17 rpm |
| Water Supply System | Water tank with air pressure, 400 L (typical) |
| Feeding Speed | ≥ 3 m³/min (typical) |
| Discharge Speed | ≥ 2 m³/min (typical) |
| Discharge Residue Rate | ≤ 0.5% |
| Complete Vehicle Gross Mass | 14,100 kg |
| Maximum Permissible Gross Mass | 31,000 kg |
| Rated Load | 16,770 kg |
| Seating Capacity | 2 persons |
| Axle Configuration | 8×4 (typical) |
| Brake System | Air brake with ABS |
| Fuel Tank Capacity | Approx. 400 L |
| Overall Dimensions (L×W×H) | 9790 × 2525 × 3980 mm |
Engine Specifications
| Engine Model | J08E-YA |
| Rated Power / Speed | 224 kW / 2500 rpm |
| Maximum Net Power / Speed | 221 kW / 2500 rpm |
| Emission Standard | Euro V (typical) |
| Fuel Type | Diesel |
| Displacement | 7.7 L (typical) |
Transmission & Drive System
| Transmission Model | Manual, 10 forward / 2 reverse (typical) |
| Drive Axle Model | Double reduction axle |
| Differential Lock | Yes |
Dimension & Performance
| Wheelbase | 1850 + 3050 + 1350 mm (typical) |
| Track (Front / Rear) | 2022 / 1830 mm (typical) |
| Min. Ground Clearance | 260 mm (typical) |
| Min. Turning Radius | ≤ 12 m (typical) |
| Max. Speed | 85 km/h |
| Gradeability | ≥ 30% |
Mixer System
| Hydraulic Pump Model | Rexroth / Kawasaki (typical) |
| Hydraulic Motor Model | Rexroth / Eaton (typical) |
| Reducer Model | ZF / PMP (typical) |
| Control System | Manual + Electronic |
| Drum Material & Thickness | High-strength steel, 5 mm (cylinder), 6 mm (end plate) |
Production & Quality
| Factory Certification | ISO9001, CE Certification |
| Compliance Standards | GB/T 19001, European Machinery Directive |
Used SANY SR155-C10 Rotary Drilling Rig 2023
| Category | Specification | Value |
| Drilling Performance | Max drilling diameter | 1500 mm |
| Drilling Performance | Max drilling depth (friction / interlocking Kelly) | 56 m / 44 m |
| Rotary Drive | Rated output torque | 155 kN·m |
| Rotary Drive | Rotation speed range | 5–35 rpm |
| Crowd System | Crowd force (push) | 155 kN |
| Crowd System | Extraction force (pull) | 160 kN |
| Crowd System | Stroke length | 4200 mm |
| Main Winch | Lifting capacity | 160 kN |
| Main Winch | Wire rope diameter | 26 mm |
| Main Winch | Max line speed | 80 m/min |
| Auxiliary Winch | Lifting capacity | 60 kN |
| Auxiliary Winch | Wire rope diameter | 14 mm |
| Auxiliary Winch | Max line speed | 75 m/min |
| Mast / Inclination | Forward / Backward tilt | 5° / 90° |
| Mast / Inclination | Lateral tilt | ±3° |
| Engine | Model | Mitsubishi D06FRC-TAA |
| Engine | Rated power | 147 kW @ 2100 rpm |
| Engine | Displacement | 6.373 L |
| Engine | Emission standard | COM III (China Stage III) |
| Dimensions / Weight | Operating weight | 48 t |
| Dimensions / Weight | Overall height | 18,590 mm |
| Dimensions / Weight | Transport width | 3100 mm |
| Dimensions / Weight | Transport height | 3265 mm |
| Dimensions / Weight | Chassis extension width | 4100 mm |
| Dimensions / Weight | Chassis length | 5975 mm |
| Dimensions / Weight | Track shoe width | 700 mm |
| Dimensions / Weight | Tail swing radius | 3715 mm |
