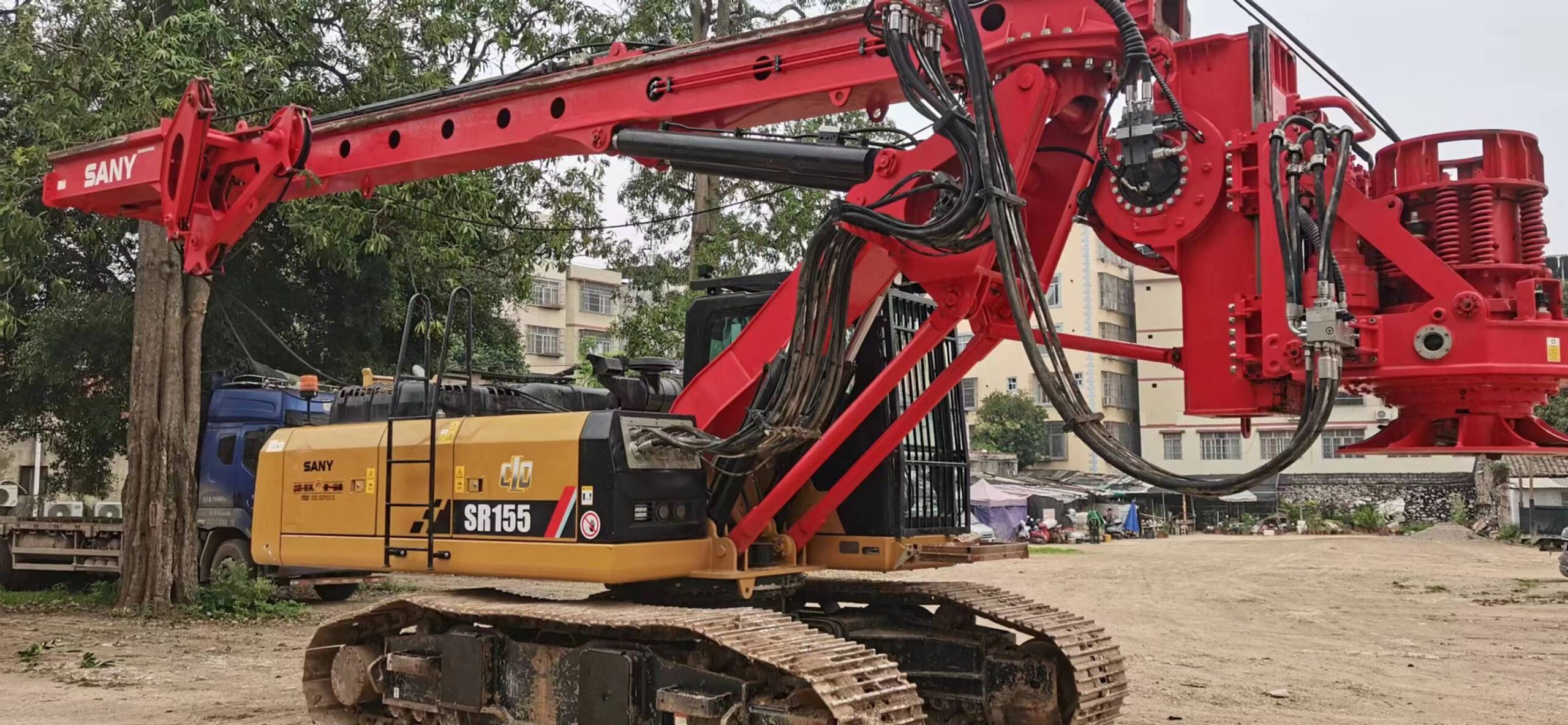

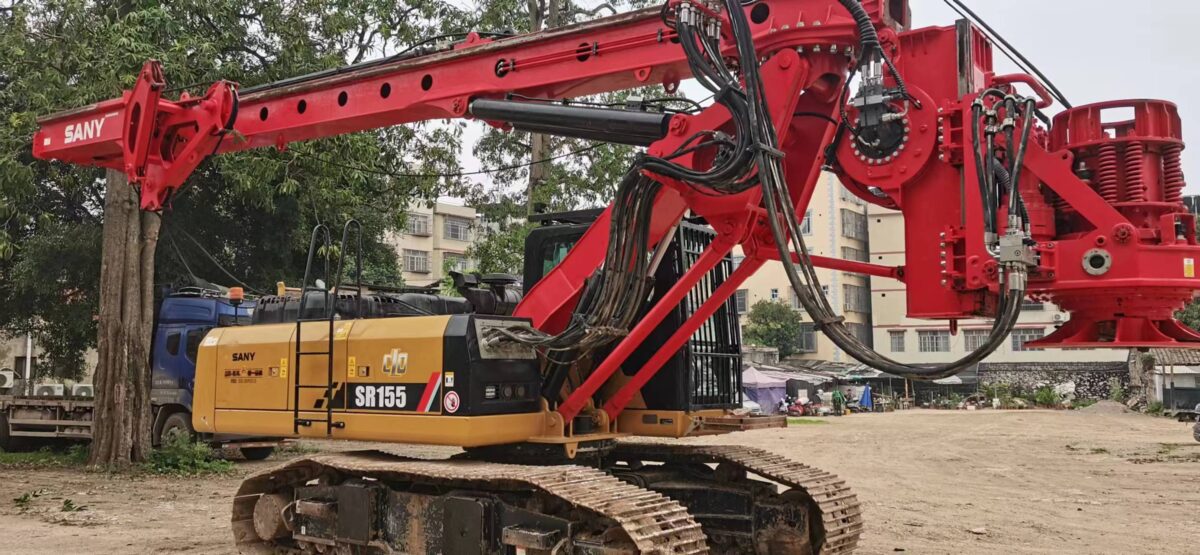

Used SANY SR155-C10 Rotary Drilling Rig 2023

Max. Drilling Diameter:1500mm
Max. Drilling Depth:56/44m
Operating Weight:48T

Additional information
Equipment Types

Sale

,

Used

Add to quote

Specification

Category Specification Value
Drilling Performance Max drilling diameter 1500 mm
Drilling Performance Max drilling depth (friction / interlocking Kelly) 56 m / 44 m
Rotary Drive Rated output torque 155 kN·m
Rotary Drive Rotation speed range 5–35 rpm
Crowd System Crowd force (push) 155 kN
Crowd System Extraction force (pull) 160 kN
Crowd System Stroke length 4200 mm
Main Winch Lifting capacity 160 kN
Main Winch Wire rope diameter 26 mm
Main Winch Max line speed 80 m/min
Auxiliary Winch Lifting capacity 60 kN
Auxiliary Winch Wire rope diameter 14 mm
Auxiliary Winch Max line speed 75 m/min
Mast / Inclination Forward / Backward tilt 5° / 90°
Mast / Inclination Lateral tilt ±3°

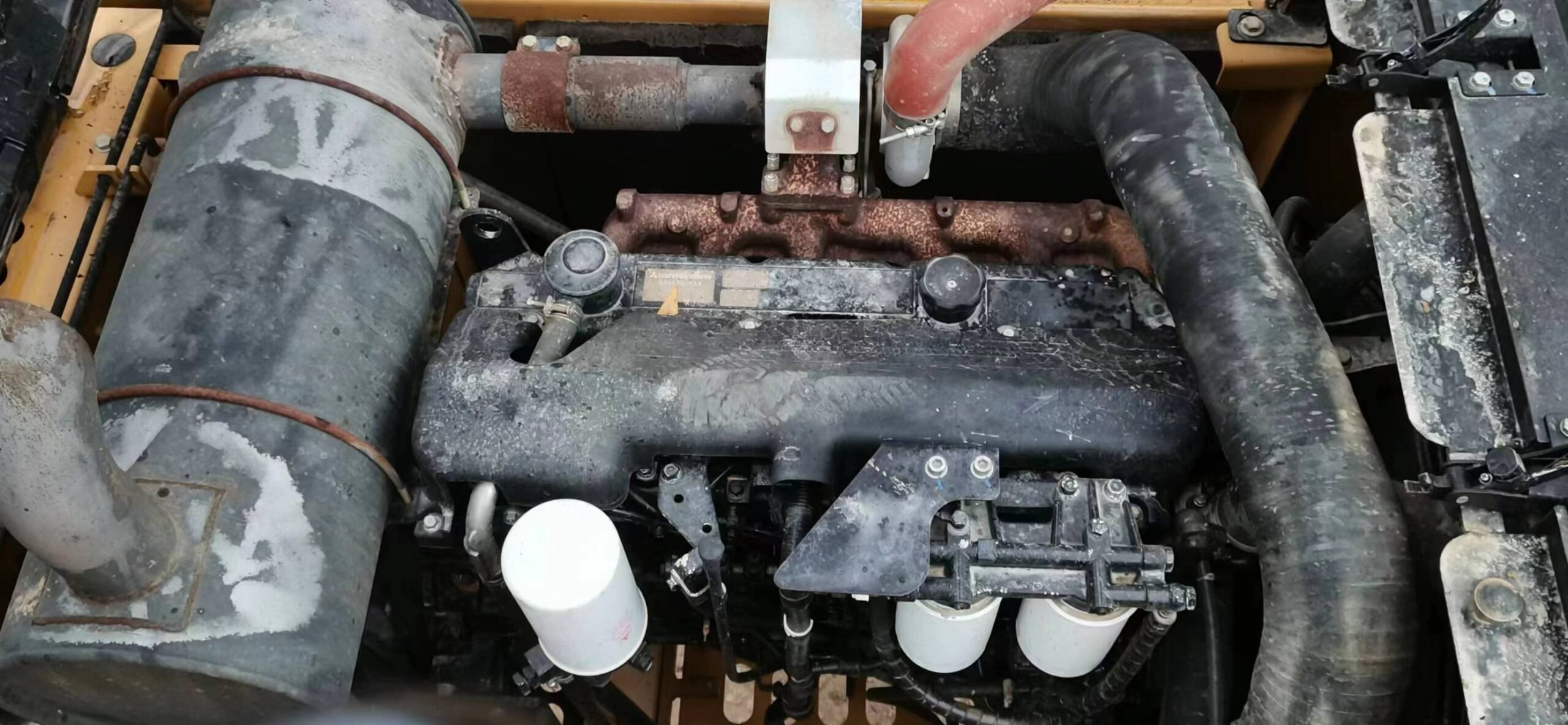

Engine Model Mitsubishi D06FRC-TAA
Engine Rated power 147 kW @ 2100 rpm
Engine Displacement 6.373 L
Engine Emission standard COM III (China Stage III)
Dimensions / Weight Operating weight 48 t
Dimensions / Weight Overall height 18,590 mm
Dimensions / Weight Transport width 3100 mm
Dimensions / Weight Transport height 3265 mm
Dimensions / Weight Chassis extension width 4100 mm
Dimensions / Weight Chassis length 5975 mm

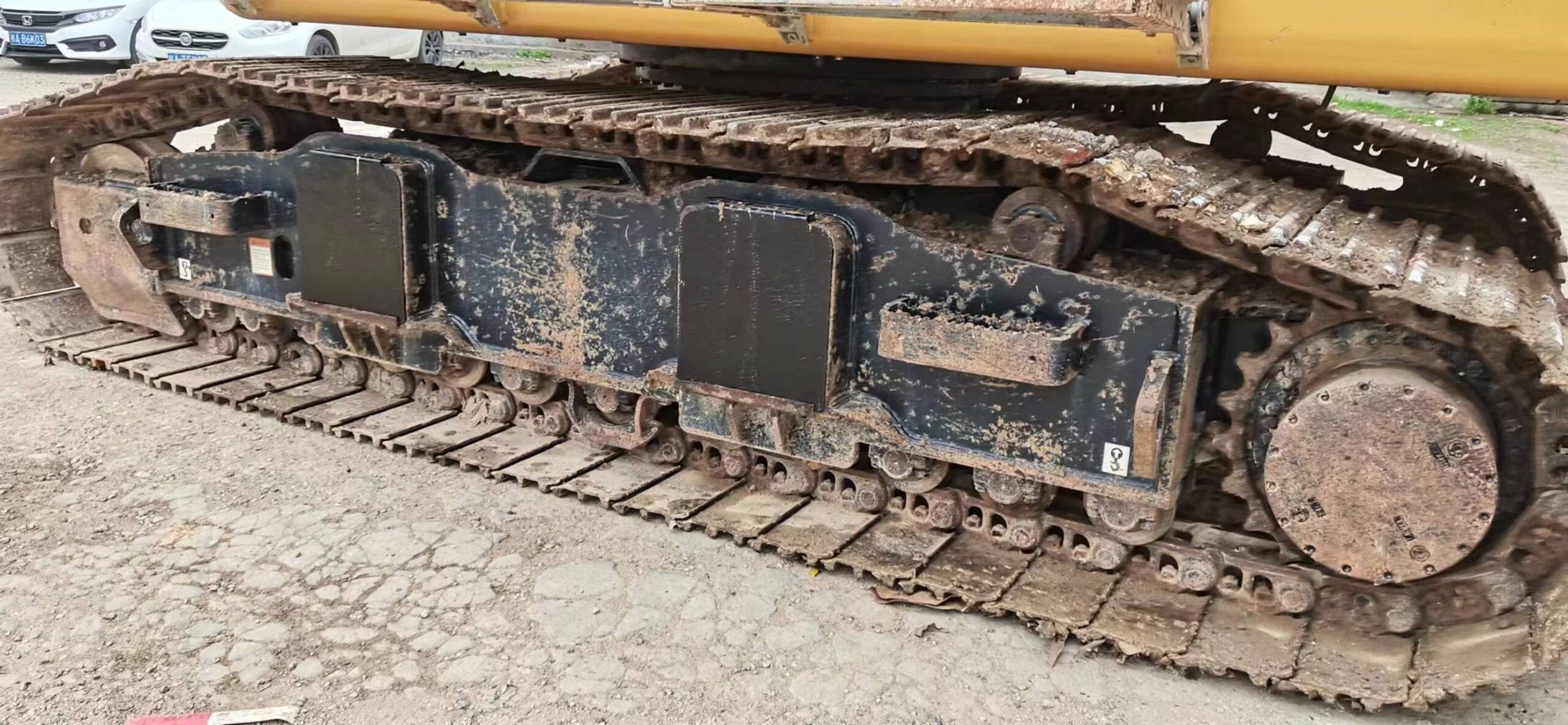

Dimensions / Weight Track shoe width 700 mm
Dimensions / Weight Tail swing radius 3715 mm

Description

Product Details

The used SANY SR155R rotary drilling rig delivers strong performance and stable operation.
It is easy to handle, dependable, and designed for efficient use.

Specifications

Equipment Rotary Drilling Rig
Place of Origin China
Brand Name Sany
Model Number SR155
Date of Manufacture 2023-03
Minimum Order Quantity 1 section
Packaging Details Roro Ship, Cargo Bulk Ship
