Vertical Reach：70.2m
Output：180m³/h
Pressure：13MPa
| Equipment Types |
Sale ,Used |
|---|

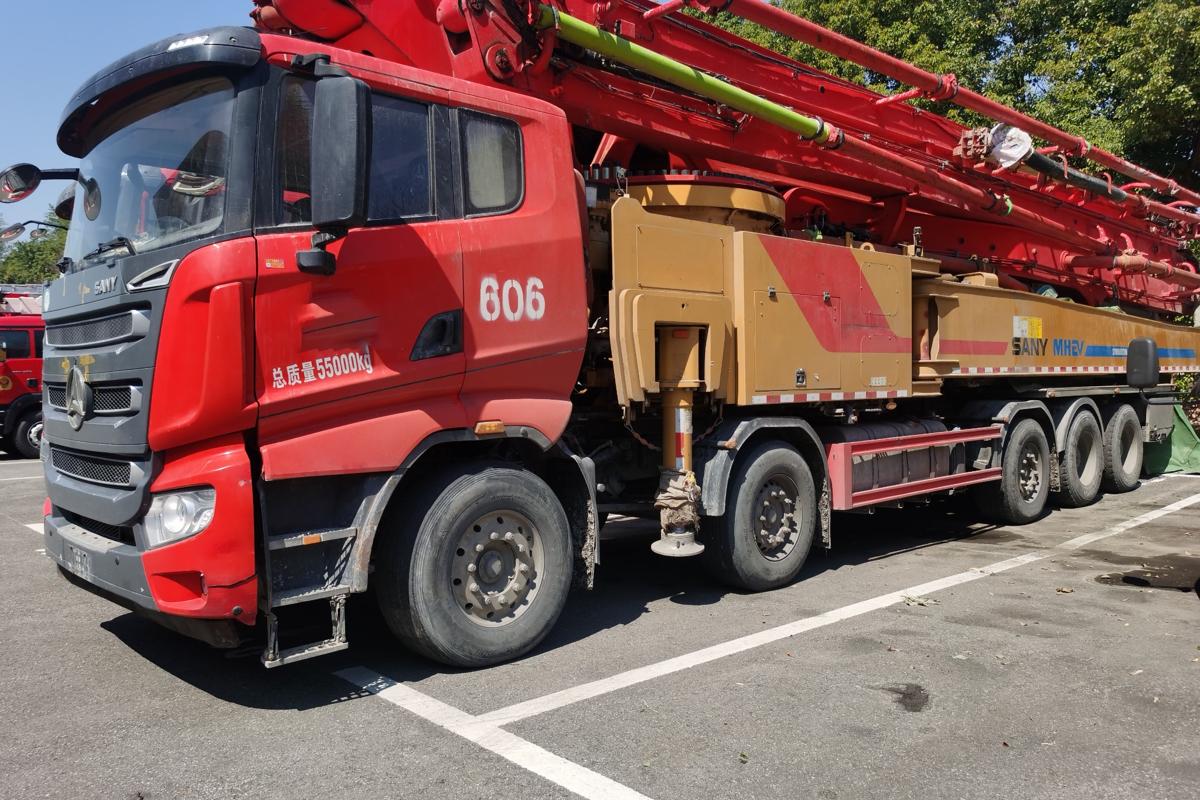

SANY SYM5552THB 71M Truck Mounted Concrete Pump
Technical Data Sheet
| Specification | Details |
| Product Type | SYM5551THB1F |
| Manufacturer | SANY Automobile Manufacturing Co., Ltd. |
| Address | SANY Industrial Park, Changsha Economic and Technological Development Zone, Changsha City, Hunan Province |
| Date of Production | 2023.08 |
| Country of Manufacture | Made in China |
| Specification | Details |
| Max Vertical Reach | 70.2 m |
| Max Horizontal Reach | 63.5 m |
| Specification | Details |
| Max Theoretical Output | 180 m³/h |
| Max Theoretical Pressure | 13MPa |
| Specification | Details |
| Engine Model | D13C6-530E4 |
| Engine Max Net Power / Speed | 385 kW / 1,900 rpm |
| Engine displacement | 12.94L |
| Specification | Details |
| Kerb / Empty Weight | 55,000 kg |
| Overall Length | 16,090 mm |
| Overall Width | 2,550 mm |
| Overall Height | 4,000 mm |
| Delivery Cylinder Bore | 260 mm |
| Delivery Cylinder Stroke | 2,100 mm |
| Specification | Details |
| Fuel Tank Capacity | 600 L |
| Water Tank Volume | 750 + 750 L |
| Outrigger Spread (Front) | 12110mm |
| Outrigger Spread (Rear) | 14990mm |
| Specification | Details |
| Emission Standard | China VI |
| Maximum road speed | 90km/h |
Product Details
The used SANY 71M Truck Mounted Concrete Pump is now available for sale.
Well-maintained and ready for immediate operation.
Specifications
| Equipment | Truck Mounted Concrete Pump |
| Place of Origin | China |
| Brand Name | Sany |
| Model Number | SYM5552THB 71M |
| Date of Manufacture | 2023-08 |
| Minimum Order Quantity | 1 section |
| Packaging Details | Roro Ship, Cargo Bulk Ship |
