Max. Drilling Diameter：1800mm
Max. Drilling Depth：51/64m
Operating Weight：69T
| Equipment Types |
Used |
|---|
| Equipment | Rotary Drilling Rig |
| Model | SANY SR215-S |
| Year of Manufacture | 2024.03 |
| Manufacturer | SANY Intelligent Technology Co., Ltd. (Beijing, China) |
| Operating Weight | 69000 kg |
| Certification | CE Certified, Made in China |
Drilling Capacity
| Max. Drilling Diameter: | 1,800 mm |
| Max. Drilling Depth: | 51 / 64 m (Depending on Kelly Bar) |
Rotary Drive
| Rated Output Torque: | 215 kN·m |
| Rotary Speed: | 5–30 / 54 rpm (Includes high spin-off speed) |
Crowd System
| Crowd Force: | 210 kN |
| Extraction Force: | 210 kN |
| Stroke: | 4,200 mm |
Main Winch
| Line Pull: | 210 kN |
| Rope Diameter: | 28 mm |
| Max. Line Speed: | 75 m/min |
Auxiliary Winch
| Line Pull: | 100 kN |
| Rope Diameter: | 20 mm |
| Max. Line Speed: | 70 m/min |
Undercarriage & Engine
| Engine Model: | ISUZU 6HK1 |
| Engine Power: | 210 kW @ 1,900 rpm |
| Emission Standard: | China IV |
| Displacement: | V |
| Expanded Width: | 4,170 mm |
| Track Shoe Width: | 700 mm |
| Tail Swing Radius: | 3,750 mm |
Overall Dimensions & Weight
| Operating Height: | 21,520 mm |
| Operating Weight: | 69 t |
| Transport Width: | 3,170 mm |
| Transport Height: | 3,550 mm |
| Transport Length: | 15,470 mm |
Product Details

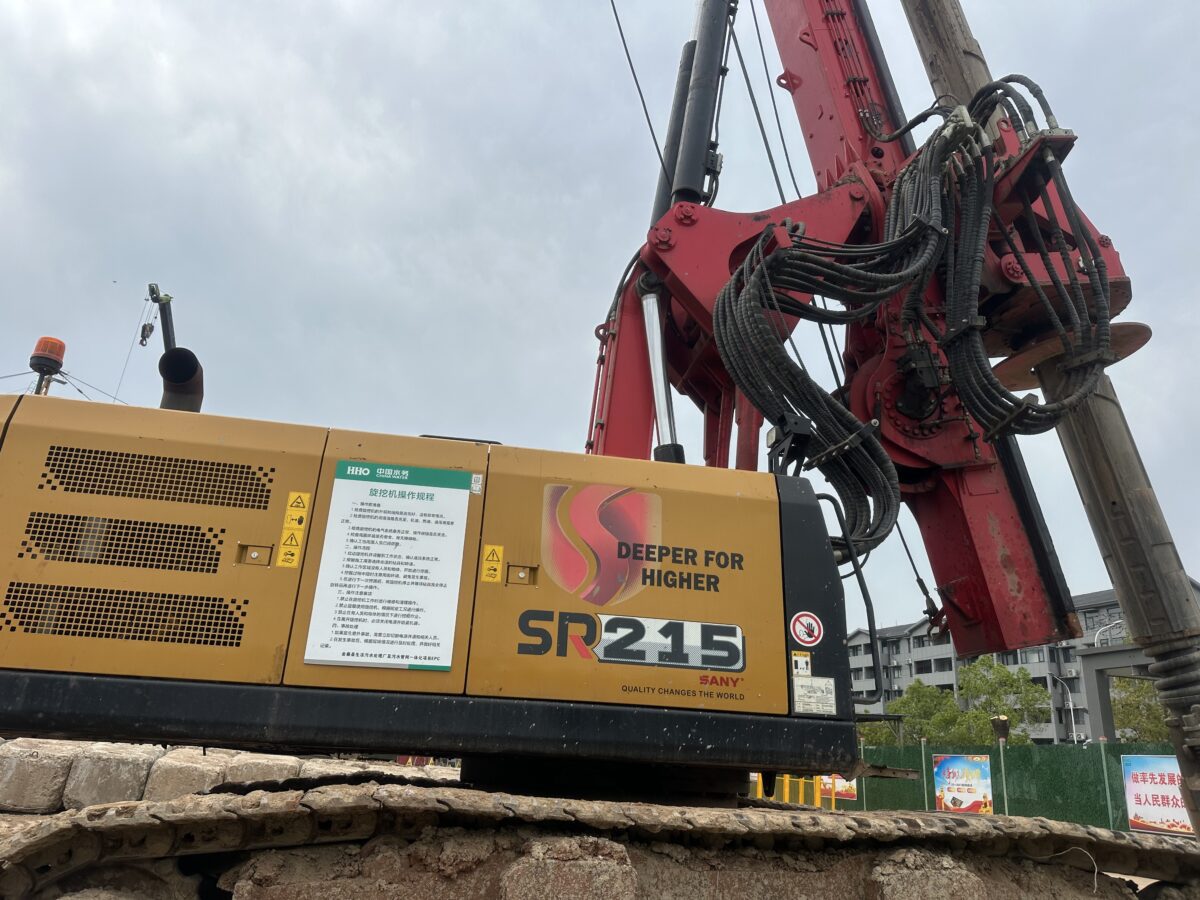

The used SANY SR215 rotary drilling rig delivers strong performance and stable operation.
It is easy to handle, dependable, and designed for efficient use.
Specifications
| Equipment | Rotary Drilling Rig |
| Place of Origin | China |
| Brand Name | Sany |
| Model Number | SR215-S |
| Date of Manufacture | 2024-03 |
| Minimum Order Quantity | 1 section |
| Packaging Details | Roro Ship, Cargo Bulk Ship |
