Max. Drilling Diameter：2500/2200mm
Max. Drilling Depth：106/87m
Operating Weight：131T
| Equipment Types |
Sale ,Used |
|---|
| Max. Pile Diameter | 2200 – 2500 mm |
| Max. Pile Depth | 87 – 106 m (depending on Kelly) |
| Max. Output Torque | 405 kN·m |
| Rotation Speed | 5 – 25 rpm |
| Crowd Force (push/pull) | 340 / 380 kN |
| Crowd Stroke | 6000 mm |
| Main Winch Line Pull | 400 kN |
| Main Winch Rope Diameter | 36 mm |
| Max. Line Speed (Main Winch) | 75 m/min |
| Auxiliary Winch Line Pull | 90 – 105 kN |
| Auxiliary Winch Rope Diameter | 20 mm |
| Max. Line Speed (Auxiliary Winch) | 70 m/min |
| Mast Inclination (Forward/Backward) | Approx. 4° / 90° or 90° / 15° (depending on version) |
| Mast Inclination (Side) | ±3° |
| Model | ISUZU 6WG1 |
| Power | 377 kW @ 1800 rpm |
| Displacement | 15.68 L |
| Emission Standard | China Stage III / COM III |
| Track Shoe Width | 800 mm |
| Crawler Width (Retracted / Extended) | 3500 – 4900 mm |
| Tail Swing Radius | 4600 mm |
| Working Height | 27700 mm |
| Transport Length | 20110 mm |
| Transport Width | 3500 mm |
| Transport Height | 3660 mm |
Product Details

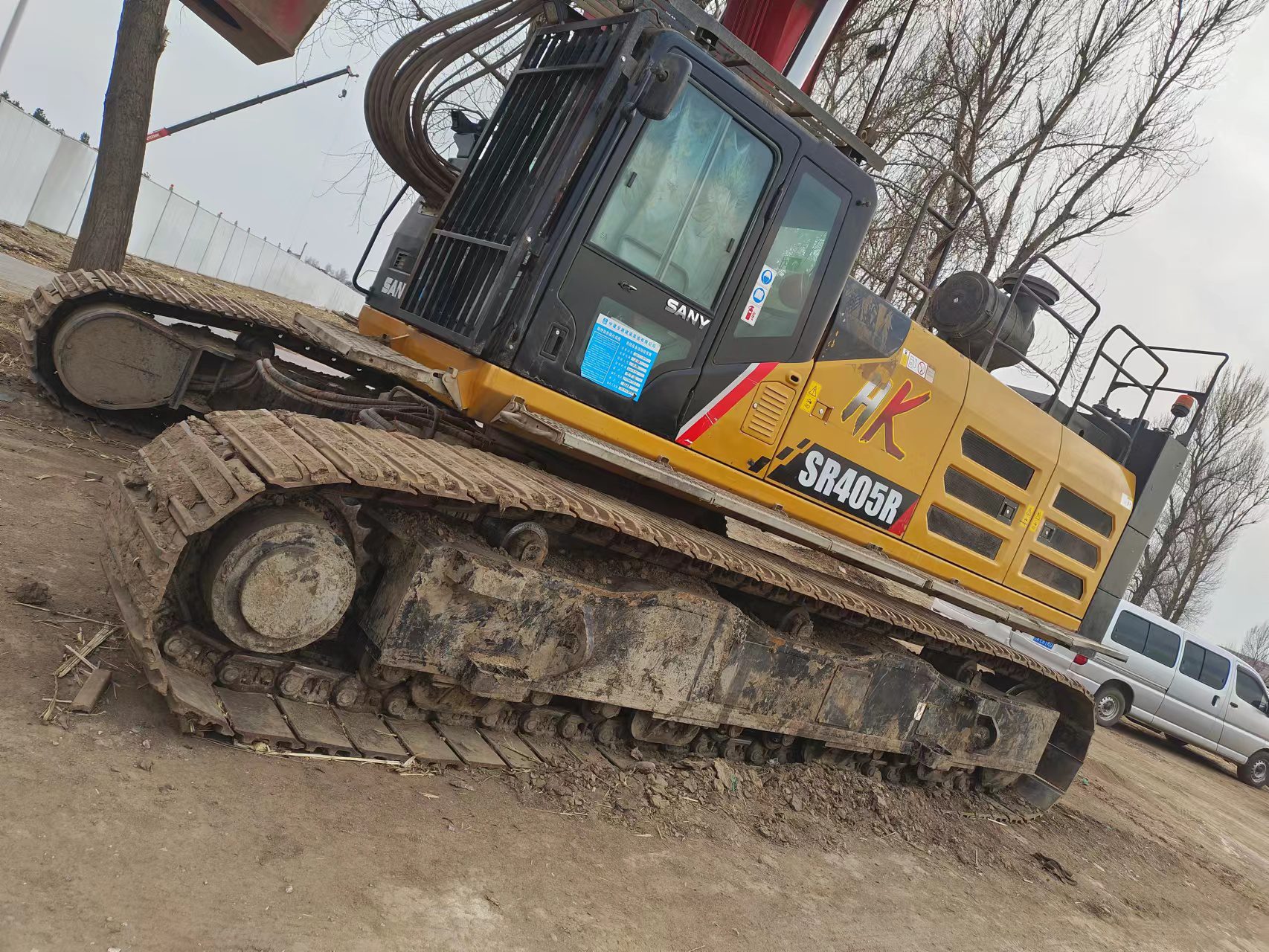

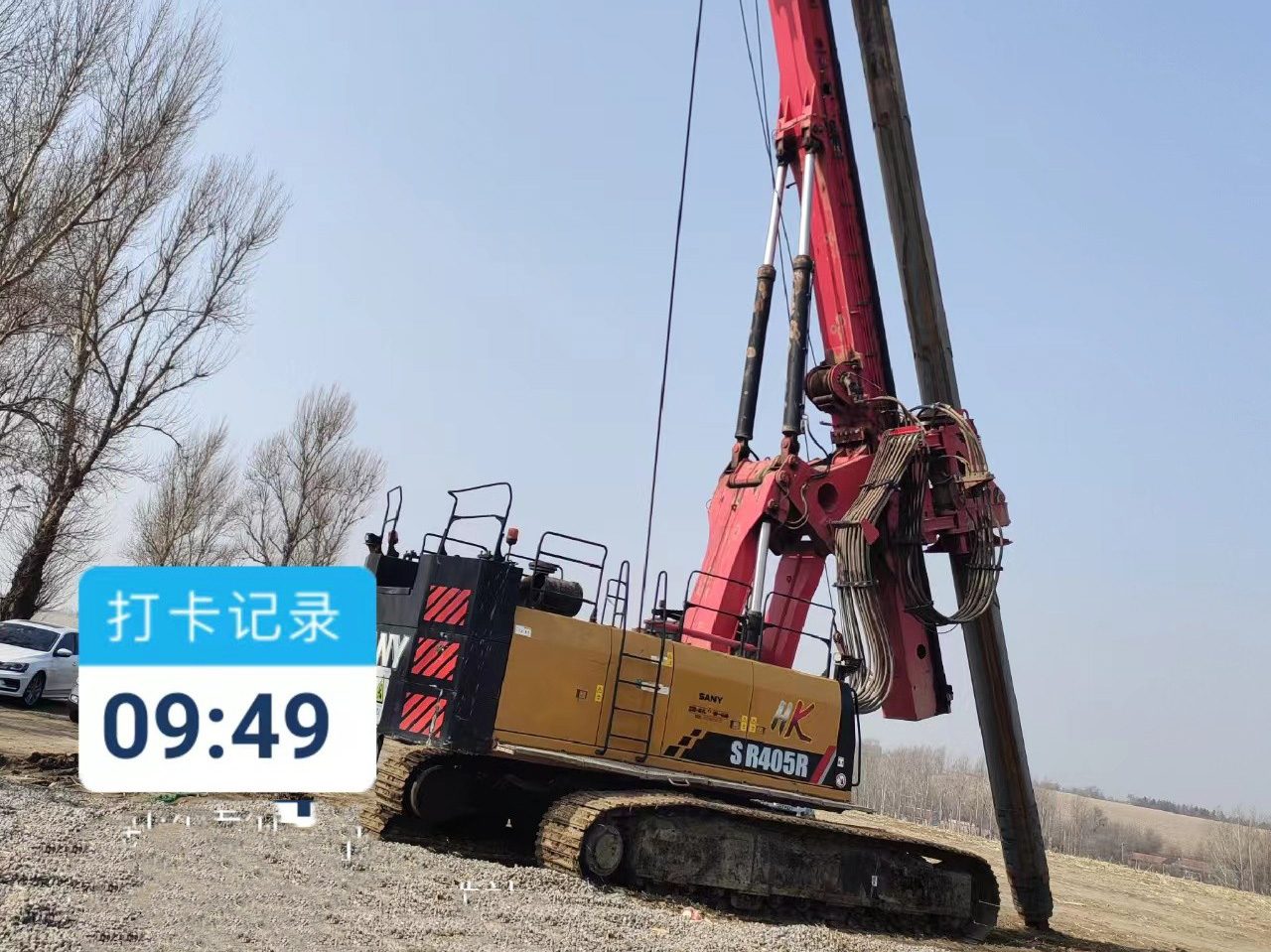

The used SANY SR405H rotary drilling rig is now available for sale.
Well-maintained and ready for immediate operation.
Specifications
| Equipment | Rotary Drilling Rig |
| Place of Origin | China |
| Brand Name | Sany |
| Model Number | SR405H |
| Date of Manufacture | 2020-11 |
| Minimum Order Quantity | 1 section |
| Packaging Details | Roro Ship, Cargo Bulk Ship |
